Fixing Detail Spider DWG Detail for AutoCAD

SPIDER Fixing Fixing

Drawing labels, details, and other text information extracted from the CAD file:

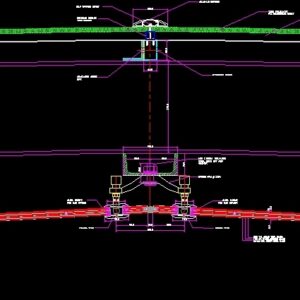

routel, alum. sleeve for spacer, routel, alum. sleeve for spacer, thk. clear temp. glass air glass thk. clear temp. glass, stainless steel nut and washer, spider arm, aluminum beading, multilayer polycarbonate sheet, square channel with epoxy coating, square tube spacer, self tapping screw, purlin, angle bar

Raw text data extracted from CAD file:

\A1;160.0 \A1;65.0 \A1;15.0 \A1;199.5 \A1;92.3 \A1;52.0 \A1;70.0 \A1;92.3 \A1;92.3 \A1;52.0 \A1;9.1 \A1;7.0 \A1;6.0 \A1;22.1 \A1;52.0 \A1;70.0 \A1;80.0 \A1;80.0 \A1;55.0 \A1;100.0 \A1;40.0 \A1;60.0 \A1;270.0 14.9738320219185 199.5301289141061 92.29123243548383 52.0 70.00000000001454 ROUTEL TF33 ALUM. SLEEVE FOR 7MM SPACER 92.26506445606356 92.2650644567184 52.0 ROUTEL TF33 ALUM. SLEEVE FOR 7MM SPACER 5 7.0 5 22.14000000001579 6MM THK. CLEAR TEMP. GLASS 7MM AIR SPACEL/STAINED GLASS 9.14MM THK. CLEAR TEMP. GLASS 52.0 70.0 160.0 64.99812633095642 79.99103868595556 80.00896131401531 M18 X 55MM STAINLESS STEEL BOLT, NUT AND WASHER 5 SPIDER ARM # 220A ALUMINUM BEADING 12MM MULTILAYER POLYCARBONATE SHEET 40X35MM SQUARE CHANNEL WITH EPOXY COATING 25X25MM SQUARE TUBE SPACER SELF TAPPING SCREW 40X60X2MM PURLIN 60x60x6MM ANGLE BAR 5 5 5 5

Language	English
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, dach, dalle, DETAIL, DWG, escadas, escaliers, fixing, lajes, mezanino, mezzanine, platte, reservoir, roof, slab, spider, stair, telhado, toiture, treppe
