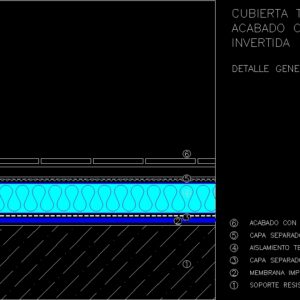

Flat Roof – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ceramic finish, general detail, walkable roof, finished with ceramic tiling, resistant support earrings, separating layer, thermal isolation, Separating layer steam diffuser, waterproofing membrane, inverted

Raw text data extracted from CAD file:

ACABADO CERAMICO DETALLE GENERAL CUBIERTA TRANSITABLE ACABADO CON EMBALDOSADO CERAMICO 6 1 SOPORTE RESISTENTE Y PENDIENTES 3 4 CAPA SEPARADORA AISLAMIENTO TERMICO 5 CAPA SEPARADORA DIFUSORA DE VAPOR MEMBRANA IMPERMEABILIZANTE 2 5 6 4 3 2 1 INVERTIDA

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DWG, flat, hangar, lagerschuppen, roof, section, shed, structure, terrasse, toit
