Flush Door Of Aluminium DWG Plan for AutoCAD

Flush Door Of Aluminium DWG Plan for AutoCAD

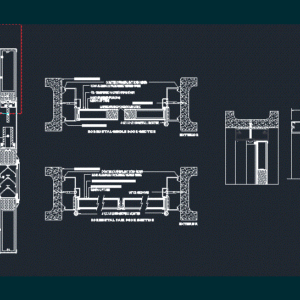

Aluminum flush door with plan.elevation and section detail drawing

Drawing labels, details, and other text information extracted from the CAD file:

hardware reinforcing, continuous sealant both sides, horizontal single door section, finished block wall, oil-temepered hadrboard backer, horizontal pair door section, exterior, jamb, attach header to jambs, stainless steel screws, applied door stop, header, wool pile, weather stripping, optional, back insert, full perimeter tube, honeycomb core, with insect screen, oil-tempered, hardboard backer, marine grade honeycomb core, marine grade, skin, glass

Raw text data extracted from CAD file:

\A1;1\S3/4; \A1;5 \A1;1\S3/8; \A1;\S5/8; HARDWARE REINFORCING & BACK-UP TUBE 4 1/2 X 4 1/2 HINGE FULL MORTISE CONTINUOUS SEALANT BOTH SIDES MAX 1/4" SHIM SPACE HORIZONTAL SINGLE DOOR SECTION FINISHED BLOCK WALL 1/4" X 3 ANCHORS OIL-TEMEPERED HADRBOARD BACKER 1/4" X 3 ANCHORS 4 1/2 X 4 1/2 HINGE FULL MORTISE CONTINUOUS SEALANT BOTH SIDES FINISHED BLOCK WALL HARDWARE REINFORCING & BACK-UP TUBE HORIZONTAL PAIR DOOR SECTION EXTERIOR JAMB ATTACH HEADER TO JAMBS STAINLESS STEEL SCREWS #10 X 1 HEX WASHER HEAD APPLIED DOOR STOP 5 HEADER WOOL PILE WEATHER STRIPPING OPTIONAL BACK INSERT EXTERIOR 0.040 ALUMINUM FACE SHEET SERIES 100BE 1-3/8" X 4-1/4" X 1/8" Full Perimeter Tube Honeycomb Core 2" Y - Louver with Insect Screen 1/4" Tempered 1" Insulated 0.040 Aluminum Oil-Tempered Hardboard Backer MARINE GRADE HONEYCOMB CORE Marine Grade OIL-TEMEPERED HADRBOARD BACKER Skin 5 5 5 Glass Glass 0.040 ALUMINUM FACE SHEET SERIES 100BE

Language	English
Drawing Type	Plan
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Glass, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, aluminum, architecture, autocad, construction, DETAIL, door, drawing, DWG, flush, plan, section
