Flush Valve Detail DWG Detail for AutoCAD

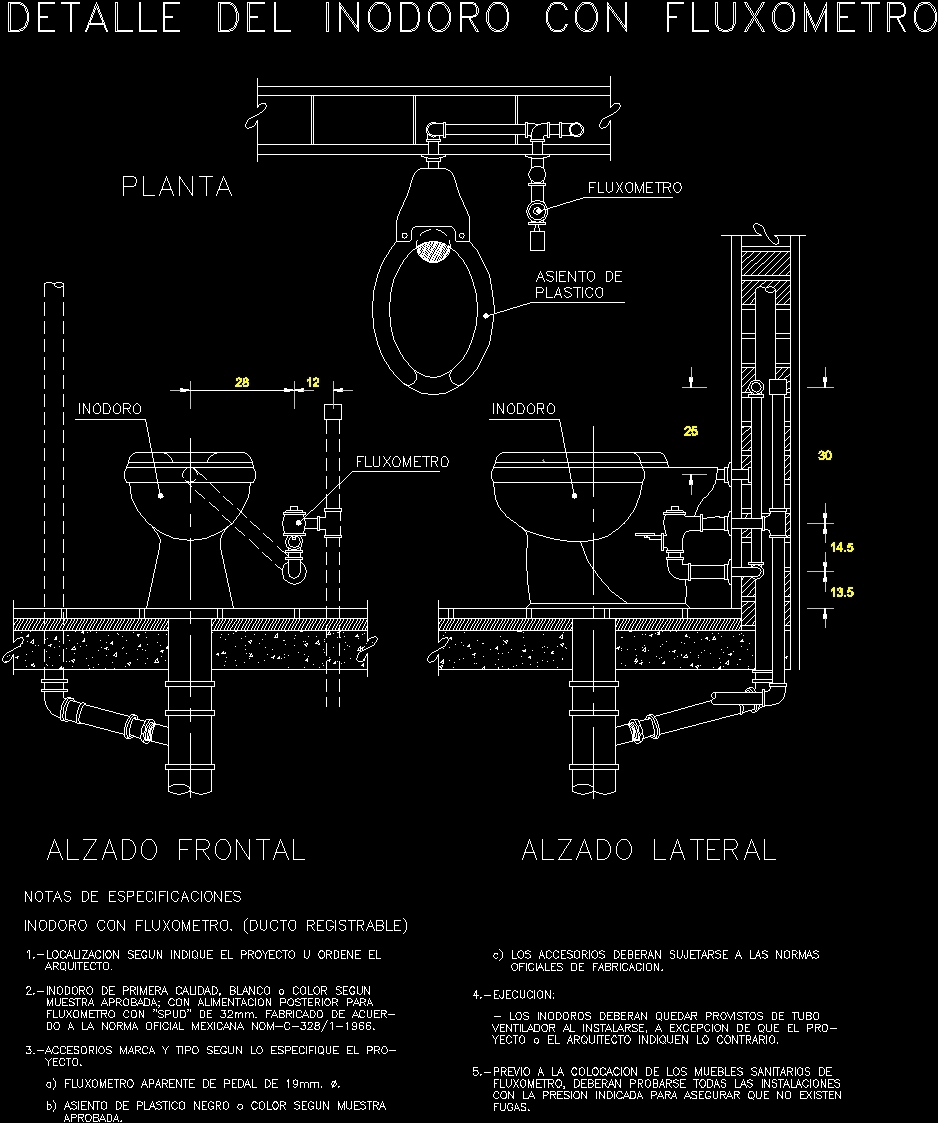

Flush valve toilet flus; plant; side elevation and front- plant

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Spec notes, Toilet with flowmeter., Flowmeter, Front elevation, plant, Side elevation, Location according to the project order the, architect., First white toilet color segun, Shows with later feed for, Flowmeter with made of, Of the official Mexican standard, Accessories type as specified in the, Project., Apparent pedal flowmeter d., Plastic seat color black according to sample, Approved., Manufacturing officers., Accessories shall be subject to the, execution:, The toilets must be fitted with a tube, Fan except that the, And the architect indicates otherwise., plastic, Flowmeter, toilet, Seat of, Prior to the placement of the sanitary furniture of, All facilities must be tested, With the indicated pressure to ensure that there are no, Leakage., Toilet detail with flowmeter

Raw text data extracted from CAD file:

\A1;28 \A1;12 \A1;30 \A1;25 \A1;14.5 \A1;13.5 NOTAS DE ESPECIFICACIONES INODORO CON FLUXOMETRO. (DUCTO REGISTRABLE) 1.- FLUXOMETRO ALZADO FRONTAL PLANTA 28 12 30 25 14.5 13.5 ALZADO LATERAL LOCALIZACION SEGUN INDIQUE EL PROYECTO U ORDENE EL ARQUITECTO. 2.- INODORO DE PRIMERA CALIDAD, BLANCO o COLOR SEGUN MUESTRA APROBADA; CON ALIMENTACION POSTERIOR PARA FLUXOMETRO CON "SPUD" DE 32mm. FABRICADO DE ACUER- DO A LA NORMA OFICIAL MEXICANA NOM-C-328/1-1966. 3.- ACCESORIOS MARCA Y TIPO SEGUN LO ESPECIFIQUE EL PRO- YECTO. a) FLUXOMETRO APARENTE DE PEDAL DE 19mm. d. b) ASIENTO DE PLASTICO NEGRO o COLOR SEGUN MUESTRA APROBADA. OFICIALES DE FABRICACION. c) LOS ACCESORIOS DEBERAN SUJETARSE A LAS NORMAS 4.- EJECUCION: - LOS INODOROS DEBERAN QUEDAR PROVISTOS DE TUBO VENTILADOR AL INSTALARSE, A EXCEPCION DE QUE EL PRO- YECTO o EL ARQUITECTO INDIQUEN LO CONTRARIO. PLASTICO FLUXOMETRO INODORO INODORO ASIENTO DE PREVIO A LA COLOCACION DE LOS MUEBLES SANITARIOS DE FLUXOMETRO, DEBERAN PROBARSE TODAS LAS INSTALACIONES 5.- CON LA PRESION INDICADA PARA ASEGURAR QUE NO EXISTEN FUGAS. DETALLE DEL INODORO CON FLUXOMETRO
