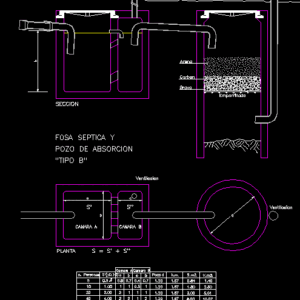

Detalles de una fosa séptica y pozo de absorción tipo B

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

camera, ventilation, section, septic tank, Absorption well, ventilation, sand, carbon, gravel, grate, ventilation, S, H.H”, plant, N. people, camera, water well, H.m.

Raw text data extracted from CAD file:

CAMARA B CAMARA A Ventilacion Ventilacion SECCION FOSA SEPTICA Y POZO DE ABSORCION "TIPO B" Ventilacion Arena Carbon Grava Emparrillado Ventilacion S' S'' S = S' + S'' PLANTA n. Personas S'(x0.10) 20 5 10 40 60 100 150 200 350 0.5 1.00 2.00 4.00 6.00 10.00 15.00 20.00 35.00 m 2 0.8 1 2 2 3 4 5 5 7 0.7 1 1 2 2 2.5 3 4 5 0.4 0.5 1 1 1.5 2 2.5 3.5 2.5 0.7 1 1 2 2 2.5 3 4 5 Camara A Camara B a c b a b c b d d Pozo h.m. S.m2. V.m3. 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 1.20 1.67 0.84 1.40 1.50 2.50 3.00 5.01 6.00 10.02 9.00 15.03 15.00 25.05 22.50 37.57 30.00 50.10 52.50 87.67 h
