Foundation Witn Concentric Shoe DWG Section for AutoCAD

Foundation Witn Concentric Shoe DWG Section for AutoCAD

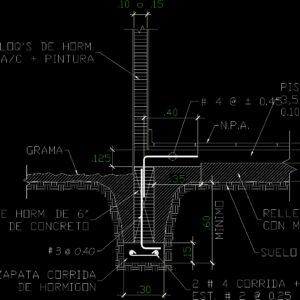

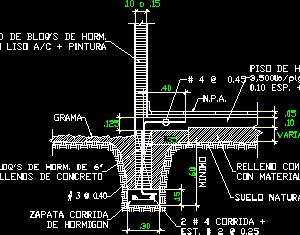

Detail of concentric shoe of foundation – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

grama, Concrete run shoe, Bloq’s horm. Of concrete fillings, Est., minimum, Natural soil, Filled with selected material, Floor of horm. Of esp. finish, N.a., Wall of bloq’s of horm. Paint smooth paint, it varies

Raw text data extracted from CAD file:

\A1;.30 \A1;.15 \A1;.60 \A1;.40 \A1;.125 \A1;.10 o .15 \A1;VARIA \A1;.10 \A1;.05 \A1;.35 GRAMA ZAPATA CORRIDA DE HORMIGON # 3 @ 0.40 BLOQ'S DE HORM. DE 6" RELLENOS DE CONCRETO 2 # 4 CORRIDA + EST. # 2 @ 0.25 MINIMO SUELO NATURAL RELLENO COMPACTADO CON MATERIAL SELECTO PISO DE HORM. DE 3,500lb/plg2 DE 0.10 ESP. + ACABADO # 4 @ ± 0.45 N.P.A. PARED DE BLOQ'S DE HORM. + REPELLO LISO A/C + PINTURA 5 5 5 5 5 5 .10 o .15 VARIA 5 5

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features	A/C
Tags	autocad, base, concentric, DETAIL, DWG, FOUNDATION, foundations, fundament, section, shoe
