Garage Door DWG Section for AutoCAD

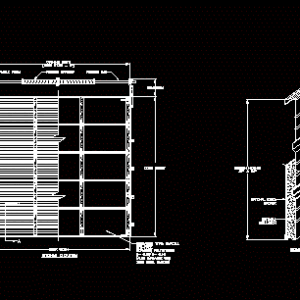

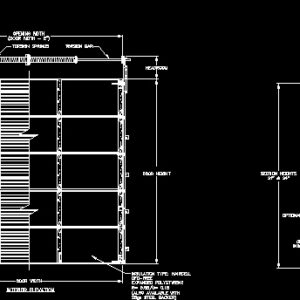

Metal door with elevation – inside and outside, and detailed sections

Drawing labels, details, and other text information extracted from the CAD file:

door height, headroom, torsion springs, door width, cable drum, exterior elevation, torsion bar, interior elevation, isometric profile, section a-a, optional steel backer, optional insulation, tongue and groove weathertight joint, bottom bracket, hinge

Raw text data extracted from CAD file:

ARCAT03 \A1;2" \A1;SECTION HEIGHTS 21" & 24" \A1;2" \A1;8" TYP. \A1;DOOR WIDTH \A1;OPENING WIDTH (DOOR WIDTH - 2") \A1;HEADROOM \A1; DOOR HEIGHT INSULATION TYPE: HAIRCELL CFC-FREE EXPANDED POLYSTYRENE R= 5.65/U= 0.18 (ALSO AVAILABLE WITH 25ga STEEL BACKER) DOOR HEIGHT HEADROOM TORSION SPRINGS OPENING WIDTH (DOOR WIDTH - 2") DOOR WIDTH CABLE DRUM A A EXTERIOR ELEVATION TORSION BAR INTERIOR ELEVATION ISOMETRIC PROFILE 2" SECTION A-A 3-1/2" U-SHAPED VINYL BOTTOM SEAL W/ALUMINUM RETAINER SECTION HEIGHTS 21" & 24" OPTIONAL STEEL BACKER OPTIONAL INSULATION TONGUE AND GROOVE WEATHERTIGHT JOINT BOTTOM BRACKET HINGE 2" 25 GAUGE EXTERIOR SKIN 8" TYP.

Language	English
Drawing Type	Section
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, detailed, door, DWG, elevation, garage, metal, section, sections
