Gas Cabinet DWG Block for AutoCAD

Gas Cabinet DWG Block for AutoCAD

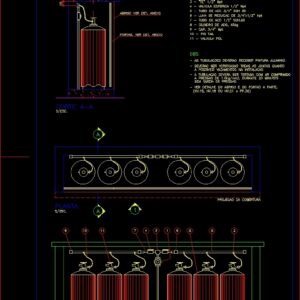

Cabinet of gas GLP foe 6 cylinders 45Kg

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

building department building, of works, glp cylinders installation, exclusive shelter, plotting, View, coverage projection, plant, coat see det. attachment, see det. attachment, court, grades:, pressure regulator, half sleeve in., npt, npt spherical valve, steel tube sch, npt reduction glove, steel tube, cylinder of, cap. npt, pig tail, valve in, the pipes must receive aluminum paint., obs:, all joints should be checked for, possible leaks at the facility, must be tested with compressed air, pressure for minutes, without pressure drop, see detail of the door sill part.

Raw text data extracted from CAD file:

DEPARTAMENTO DE EDIFICACOES - EDIF PMSP-SECRETARIA DE SERVICOS E OBRAS 30 15 \A1;15 \A1;30 INSTALACAO P/6 CILINDROS GLP 45kg, EXCLUSIVE ABRIGO PLOTAGEM 10=1 9 10 7 5 2 VISTA 1 S/ESC. PROJECAO DA COBERTURA PLANTA S/ESC. ABRIGO VER DET. ANEXO PORTAO, VER DET. ANEXO 15 30 CORTE A-A S/ESC. NOTAS: 1 - REGULADOR DE PRESSAO 2 - MEIA LUVA POL 3 - "TE" 1/2" Npt 4 - VALVULA ESFERICA 1/2" Npt 5 - TUBO DE ACO 3/4" SCH 80 6 - LUVA DE REDUCAO DE 3/4"x1/2" Npt 7 - TUBO DE ACO 1/2" SCH.80 8 - CILINDRO DE ACO, 45kg 9 - CAP. 3/4" Npt 10 - PIG TAIL 11 - VALVULA POL - AS TUBULACOES DEVERAO RECEBER PINTURA ALUMINIO. OBS: - DEVERAO SER VERIFICADAS TODAS AS JUNTAS QUANTO A POSSIVEIS VAZAMENTOS NA INSTALACAO - A TUBULACAO DEVERA SER TESTADA COM AR COMPRIMIDO A PRESSAO DE 1.0kg/cm2, DURANTE 20 MINUTOS SEM QUEDA DE PRESSAO - VER DETALHE DO ABRIGO E DO PORTAO A PARTE. A A 11 8 6 1 3 4 (HV.15, HV.18 OU HV.21 e PP.36) 1

Language	Portuguese
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Aluminum, Steel
Measurement Units
Footprint Area
Building Features
