Glass Facade DWG Section for AutoCAD

Glass Facade DWG Section for AutoCAD

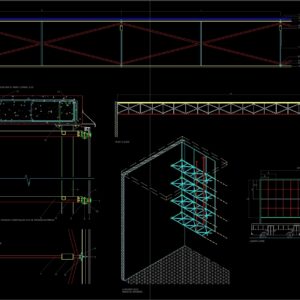

Constructive section of glass facade with metallic structure – Details and axonometrics views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Bus, Circular, Circular, Entered, Exit, Circular, Detail of joining the horizontal loops with the side wall, Glazing facade detail with the upper slab, Plant, Elevation, Axonometric from the inside, Horizontal locking detail, Aluminum carpentry, junction, exterior, laminar glass, high strength screw, tube tube, tube, tube, circular, bolts, steel slab, sling plate, for vertical round engraving, Aluminum carpentry junction external laminar glass High resistance screwdriver tube tube tube circular tube bolt anchor bolt of the wall to the side support wall side engagement armored from the side wall

Raw text data extracted from CAD file:

BUS CIRCULAR 15 CIRCULAR 15 ENTADA SALIDA SALIDA CIRCULAR 15 DETALLE DE UNIÓN DE LAS CERCHAS HORIZONTALES CON EL MURO LATERAL 1/25 DETALLE DE UNIÓN DE LA FACHADA ACRISTALADA CON EL FORJADO SUPERIOR 1/10 PLANTA 1/100 ALZADO 1/300 AXONOMETRICA DESDE EL INTERIOR DETALLE DE CERCHA HORIZONTAL 1/10 1 4 9 2 12 5 3 8 7 1 CARPINTERIA DE ALUMINIO A JUNQUILLADO EXTERIOR 2 VIDRIO LAMINAR 6+6 3 L 100.75.8 4 L 60.30.4 5 TORNILLLO DE ALTA RESISTENCIA 6 L 60.5 7 TUBO 80.40.4 8 TUBO 50.50.3 (DIAGONAL CERCHA) 9 TUBO 160.80.4 10 TUBO CIRCULAR 60.4 11 PERNOS 12 CALZO DE ACERO 13 PLETINA DE SUJECCIÓN PARA LOS MONTANTES VERTICALES 14 REDONDOS DE ENGANCHE 7 9 5 12 6 10 2 4 8 8 3 9 7 10 1 CARPINTERIA DE ALUMINIO A JUNQUILLADO EXTERIOR 2 VIDRIO LAMINAR 6+6 4 L 60.30.4 5 TORNILLLO DE ALTA RESISTENCIA 6 L 60.5 7 TUBO 80.40.4 8 TUBO 50.50.3 (DIAGONAL CERCHA) 9 TUBO 160.80.4 10 TUBO CIRCULAR 60.4 11 PERNOS 13 PLETINA DE ANCLAJE DE LA CERCHA AL MURO DE SUJECCIÓN LATERAL 14 REDONDOS DE ENGANCHE 15 ARMADO DEL MURO LATERAL 1 5 11 2 4 8 7 1 5 11 13 14 15 14 13 13 14 14 4 2 20 10 5 2.5 6 2 20 2

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Glass, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, axonometrics, construction details section, constructive, cut construction details, details, DWG, facade, glass, metallic, section, structure, views
