Globe Valve DWG Block for AutoCAD

Globe Valve DWG Block for AutoCAD

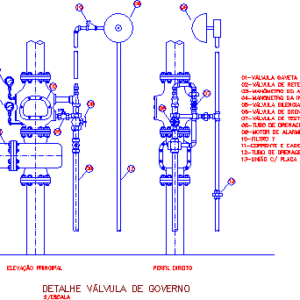

Globe Valve – Views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

main elevation, government valve detail, right profile, orifice plate, engine drainage system, padlock, alarm, of test, drainage system, alarm mute, of the installation, of supply, alarm retention, drawer stem up, drainage system

Raw text data extracted from CAD file:

ELEVAÇÃO PRINCIPAL S/ESCALA DETALHE VÁLVULA DE GOVERNO 01 04 03 02 05 06 10 09 08 12 06 09 PERFIL DIREITO 13-UNIÃO C/ PLACA DE ORIFÍCIO d 1/8" 12-TUBO DE DRENAGEM (DO MOTOR DE ALARME) 11-CORRENTE E CADEADO 10-FILTRO Y 09-MOTOR DE ALARME 07-VÁLVULA DE TESTE (N.A.) 06-VÁLVULA DE DRENAGEM (N.F.) 05-VÁLVULA SILENCIADORA DO ALARME 04-MANÔMETRO DA INSTALAÇÃO 03-MANÔMETRO DO ABASTECIMENTO 02-VÁLVULA DE RETENÇÃO E ALARME 01-VÁLVULA GAVETA HASTE ASCENDENTE (N.A.) 08-TUBO DE DRENAGEM (DA INSTALAÇÃO) 11 13 07

Language	Portuguese
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, DWG, einrichtungen, facilities, gas, gesundheit, globe, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, valve, views, wasser bestimmung, water
