Ground Connection DWG Detail for AutoCAD

Ground Connection DWG Detail for AutoCAD

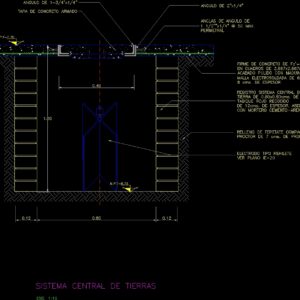

Detail of groun connection

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete floor of polished finished frames with reinforced with electrowelded mesh of cms. of thickness., central land system, esc, filling of compact tepetate proctor of cms. on average, reel type electrode see flat, register central ground system of red partition annealing of seated with mortar, angle of, reinforced concrete cover, angle anchors of max. perimeter, angle of

Raw text data extracted from CAD file:

\A1;0.80 \A1;0.12 \A1;0.12 \A1;0.40 \A1;1.00 \A1;0.08 FIRME DE CONCRETO DE Fc'=200Kg/cm2 EN CUADROS DE 2.667x2.667m. ACABADO PULIDO CON MAQUINA, ARMADO CON MALLA ELECTROSOLDADA DE 6x6 10/10. 8 cms. DE ESPESOR. 5 -10.4527808055899 -11.59218307215193 -11.59218307215193 SISTEMA CENTRAL DE TIERRAS ESC. 1:10 -11.59218307215193 -11.59218307215193 N.P.T-8.70 RELLENO DE TEPETATE COMPACTO 90° PROCTOR DE 7 cms. DE PROMEDIO ELECTRODO TIPO REHILETE VER PLANO IE-20 REGISTRO SISTEMA CENTRAL DE TIERRA DE 0.80x0.80cms. DE TABIQUE ROJO RECOCIDO DE 12cms. DE ESPESOR, ASENTADO CON MORTERO CEMENTO-ARENA 1:5 ANGULO DE 1-3/4"x1/4" TAPA DE CONCRETO ARMADO N.P.T-7.70 ANCLAS DE ANGULO DE 1 1/2""x1/4" @ 50 MAX. PERIMETRAL ANGULO DE 2"x1/4"

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, connection, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, ground, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, wasser bestimmung, water
