Highway – Section Brunches DWG Section for AutoCAD

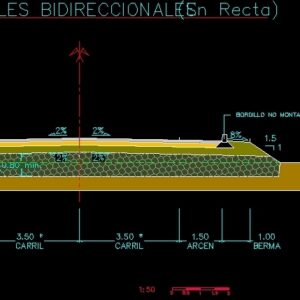

Section type of roadway in bi-directional brunches

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

natural terrain, type section in bidirectional branches, detail a, sections type, is indicated in the corresponding, longitudinal profile., not mountable curb

Raw text data extracted from CAD file:

\A1;3.50 * CARRIL \A1;1.00 BERMA \A1;1.50 ARCEN \A1;3.50 * CARRIL \A1;1.00 BERMA \A1;1.50 ARCEN \A1;0.50 min. \A1;0.80 min. 3.50 * CARRIL 1.00 BERMA 1.50 ARCEN 2% 8% 0.50 min. TERRENO NATURAL 2% 2% 8% 3.50 * CARRIL 1.00 BERMA 1.50 ARCEN TERRENO NATURAL SECCIÓN TIPO EN RAMALES BIDIRECCIONALES ESCALA 1:50 (En Recta) DETALLE A 1.5 1 1.5 1 0.80 min. 1.5 1 0.5 0 1:50 2 2.6. 5 6 SECCIONES TIPO *NOTA: El sobreancho de calzada en curva viene indicado en el correspondiente Perfil Longitudinal. BORDILLO NO MONTABLE BORDILLO NO MONTABLE 2%

Language	Spanish
Drawing Type	Section
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, DWG, HIGHWAY, pavement, Road, route, section, type
