House DWG Section for AutoCAD

House DWG Section for AutoCAD

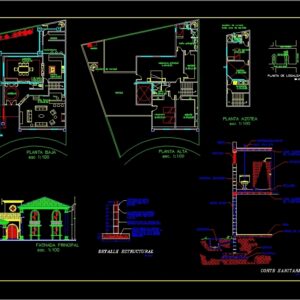

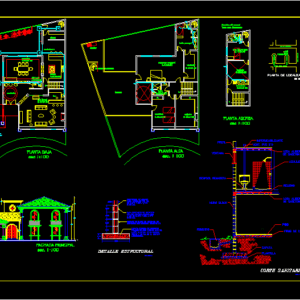

Twoo Floors- Four Bedrooms – Plants – Sections – Elevations

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

structural, longitudinal detail, concrete running shoe, reinforcing projection, for castles with vs., concrete shoring, seated with cement mortar, without scale, floor, register, sanitary cut, concrete firm, template, shoe, b- b ‘, parapet, shower basin, block wall, window, lightweight slab, cassette, filling, waterproofing, tile, main facade, ing. sanitary fed., flat no., acots: meters, permitting plan, general direction, n o r t e, public works, orientation, col. oil, tampico, tamps., residential., arq. sandra lynn white, owner :, project and design :, construction :, calculations :, reference :, location :, expert resp.:, location plant, priv. cozumel, street fresh water, land, street francita, ave. hidalgo, priv. mazatlan, contrabarra, alcena, kitchen, ground floor, formal room, spiral staircase, closet, garage, workshop, garden, lobby, dining room, cl., first floor, bedroom, study, bar, grill, terrace, master bedroom, bathroom , dressing room, main bathroom, out to, exterior, saf, sac, pump, cistern, roof plant, laundry, cto. of service, lying, towards service area

Raw text data extracted from CAD file:

DETALLE ESTRUCTURAL LONGITUDINAL ZAPATA CORRIDA DE CONCRETO F'C=200 KG/CM2 ARMADA CON VS. 3/8"d @ 20 CM. EN EL SENTIDO CORTO Y 25 CM. EN EL SENTIDO PROYECCION DE ARMADO PARA CASTILLOS CON VS. DE 3/8"d Y EST. 1/4"d @ 20 CM. DALA DESPLANTE DE CONCRETO F'C=200 KG/CM2 ARMADA CON 4 VS. DE 3/8"d Y EST. 1/4"d @ 20 CM. RODAPIE DE BLOCK DE 15X20X40 CM. ASENTADO CON MORTERO CEMENTO 0.80 0.15 0.20 0.20 0.20 0.20 0.15 SIN ESCALA 1:3 PISO REGISTRO ESC. 1:25 CORTE SANITARIO FIRME DE CONCRETO PLANTILLA ZAPATA b-b' PRETIL CESPOOL REGADERA MURO BLOCK VENTANA LOSA ALIGERADA LOSA ALIGERADA DE CASETONES DE CASETONES RELLENO VENT. PVC 2"d IMPERMEABILIZANTE AZULEJO \A1;2.7 \A1;0.3 \A1;0.13 \A1;4.32 \A1;3.27 \A1;0.3 \A1;0.3 \A1;5.43 \A1;0.13 \A1;0.3 \A1;7.57 \A1;3.94 \A1;0.17 \A1;2.0 \A1;0.3 \A1;4.75 \A1;6.56 FACHADA PRINCIPAL PRIVADA MAZATLAN No. 121 ING. SANITARIA FED. PLANO No. ACOTS: METROS ING. SANITARIA FED. P-1 PLANO No. ACOTS: METROS PLANO DE PERMISOS DIR.GENERAL DE DIR.GENERAL DE N O R T E N O R T E OBRAS PUBLICAS ORIENTACION ESCALA 1:100 OBRAS PUBLICAS ORIENTACION COL. PETROLERA, TAMPICO, TAMPS. RESIDENCIAL. Arq. Sandra Lynn White PROPIETARIO: PROYECTO Y DISENO: CONSTRUCCION: RESIDENCIAL. PROYECTO Y DISENO: CONSTRUCCION: CALCULOS: REFERENCIA: UBICACION: PERITO RESP.: PERITO RESP.: PLANTA DE LOCALIZACION PRIV. COZUMEL CALLE AGUA DULCE TERRENO CALLE FRANCITA SIN ESCALA AVE. HIDALGO PRIV. MAZATLAN 0.0 0.0 0.0 0.0 0.0 5 0.3 0.0 0.0 0.0 7.57 0.0 5 2.0 5 esc. 1:100 0.0 0.0 2 2 contrabarra alcena 4.60x3.85 cocina PLANTA BAJA esc 1:100 5.40x8.00 sala formal escalera de caracol closet cochera taller jardin vestibulo s 1/2 baño 1.00x2.00 comedor 4.40x6.75 cl. cl. PLANTA ALTA esc. 1:100 recamara 5.45x3.90 estudio 5.45x3.90 escalera de caracol bar asador terraza recamara principal 4.40x8.20 baño 2.20x2.90 vestidor 5.40x2.40 b baño principal B-2 B-1 R1 R2 R3 R4 R5 sale a exterior SAF SAC SAF SAC bomba cisterna SAF SAC B TV TV TV esc 1:100 PLANTA AZOTEA 2.00x3.85 lavanderia cto. de servicio b 3.35x3.85 tendido 3.10x3.85 1.25x2.45 baño hacia area de servicio escalera de caracol B-1 tv B-3 SAC SAF

Language	Spanish
Drawing Type	Section
Category	House
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Pool, Garage
Tags	apartamento, apartment, appartement, aufenthalt, autocad, bedrooms, casa, chalet, dwelling unit, DWG, elevations, floors, haus, house, logement, maison, plants, residên, residence, section, sections, twoo, unidade de moradia, villa, wohnung, wohnung einheit
