Imhoff Tank DWG Section for AutoCAD

Imhoff Tank DWG Section for AutoCAD

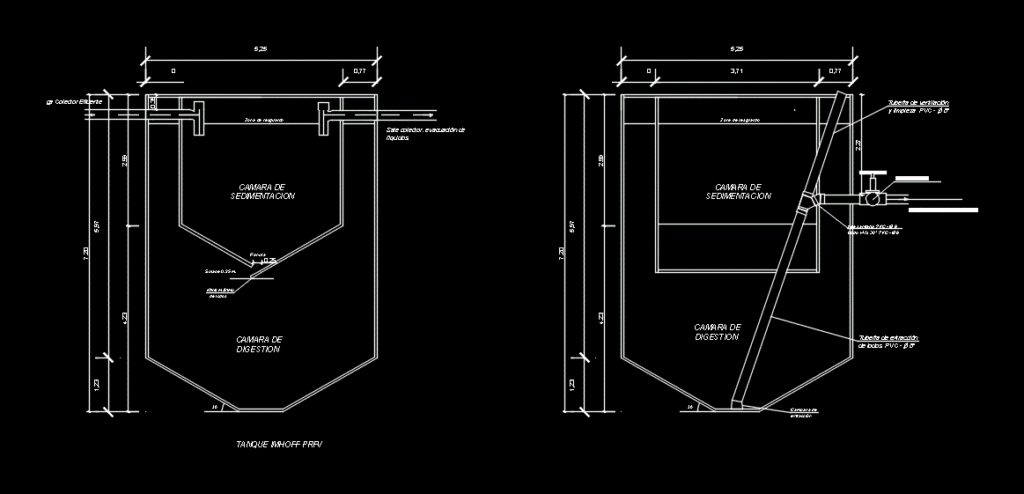

Detail of two sections Imhoff circular tank; a transverse and a longitudinal

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Effluent collector arrives, Out manifold. Evacuation of liquids, Buffer zone, Sediment chamber, Digestion chamber, Maximum level of sludge, groove, Overlap m., Imhoff tank prfv, Buffer zone, Sediment chamber, Digestion chamber, Extractor hood, Sluice gate, Pvc slurry extraction pipe, Yee sanitary pvc elbow pvc, Ventilation pipe pvc cleaning, Sale tub. Pvc slurry extraction

Raw text data extracted from CAD file:

4.23 5,97 1,23 3,71 4.23 5,97 1,23 2.99 7.20 0.35 0 0,77 5,25 2.99 7.20 2.27 0 0,77 5,25 5 5 5 5 5 Llega Colector Efluente Sale colector. evacuación de líquidos Zona de resguardo CAMARA DE SEDIMENTACION CAMARA DE DIGESTION Nivel máximo de lodos 0.25 Ranura Solape 0.25 m. 30° TANQUE IMHOFF PRFV 5 5 5 5 5 5 5 5 5 5 Zona de resguardo CAMARA DE SEDIMENTACION CAMARA DE DIGESTION 30° 5 5 5 Campana de extracción Llave compuerta Tubería de extracción de lodos PVC - Ø 8" Yee sanitaria PVC - Ø 8" Codo H-M 30° PVC - Ø 8" Tubería de ventilación y limpieza PVC - Ø 8" Sale Tub. extracción de lodo PVC 5

Language	Spanish
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, circular, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, imhoff, l'approvisionnement en eau, la sant, le gaz, longitudinal, machine room, maquinas, maschinenrauminstallations, provision, section, sections, septic tank, tank, transverse, wasser bestimmung, water
