Inspection Well (Manhole) DWG Full Project for AutoCAD

Project inspection well to pluvial drainage

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

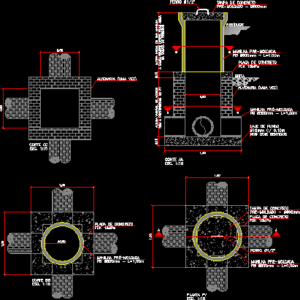

Variable height according to, Initial height of a shackle, Bottom slab, Both ways, Concrete cover, shackle, masonry, Waste, shackle, Variable height according to, Initial height of a shackle, Lid should always stay above, Cut aa, Esc., Gravel, Of the waste layer, Concrete plate, Fck, Cut cc, Esc., Cut bb, Esc., Pv plant, Esc., iron, Concrete cover, iron, Concrete plate, Fck, shackle, Concrete plate, Fck, shackle, masonry, With depth of pv

Raw text data extracted from CAD file:

1,30 0,15 ALTURA VARIÁVEL DE ACORDO ALTURA INICIAL DE UMA MANILHA 0,60 0,10 0,60 0,60 1,00 1,00 \U+22050,60 1,00 1,00 LAJE DE FUNDO Ø10mm C/ 0,10m NOS DOIS SENTIDOS TAMPA DE CONCRETO PRÉ-MOLDADO - Ø600mm MANILHA PRÉ-MOLDADA PB Ø600mm - L=1,00m ALVENARIA (UMA VEZ) 5 RESÍDUOS MANILHA PRÉ-MOLDADA PB Ø300mm - L=1,00m 5 ALTURA VARIÁVEL DE ACORDO ALTURA INICIAL DE UMA MANILHA A TAMPA SEMPRE DEVERÁ FICAR ACIMA CORTE AA ESC. 1:15 BRITA DA CAMADA DE RESÍDUOS 5 PLACA DE CONCRETO FCK 15MPa 5 0,60 0,60 C C CORTE CC ESC. 1:15 CORTE BB ESC. 1:15 1,00 1,00 5 PLANTA PV ESC. 1:15 1,00 1,00 FERRO Ø1/2" B B TAMPA DE CONCRETO PRÉ-MOLDADO - Ø600mm FERRO Ø1/2" PLACA DE CONCRETO FCK 15MPa MANILHA PRÉ-MOLDADA PB Ø600mm - L=1,00m PLACA DE CONCRETO FCK 15MPa MANILHA PRÉ-MOLDADA PB Ø600mm - L=1,00m A A ALVENARIA (UMA VEZ) COM A PROFUNDIDADE DO PV
