Installation Of Gas Houses DWG Full Project for AutoCAD

Installation Of Gas Houses DWG Full Project for AutoCAD

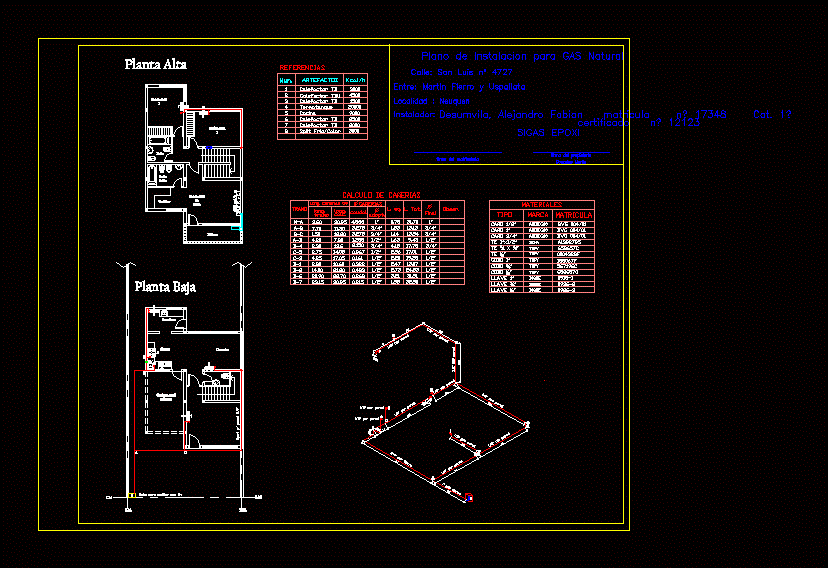

Project installation gas in a house composed of 2 floors with it respsective reference tables as well as tables with artefacts with their tuiton.Clarification .No tuition may vary.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Heat, Ground epoxy, laundry, kitchen, Semi-covered carport, room, bath, Bathroom suite, dressing room, terrace, top floor, low level, references, Num., Artifacts, Heater tb, Heater tbu, Hot water tank, Calculation of pipes, section, Long, Calc., Long, flow, Pipes, Adopt, L. Eq., Niche for cap gauge, E.m., L.m., Epoxy wall, Split f. C., R.v., Heater tb, Heater tb, kitchen, Split, Long Pipes, L. Tot., final, To observe, Town neuquen, Installation plan for natural gas, Between: martin fierro uspallata, Signature of the enrolled, Street: san luis nº, Installer:, Alejandro fabian matricula cat., Gonzales martin, Owner’s signature, Certificate no, Follow epoxy, dinning room, By land, By wall, By land, By wall, materials, brand, enrollment, Bvg, spout, kind, spout, Bvg, Bvg, Acindgas, Dema, Tupy, dam

Raw text data extracted from CAD file:

L Calorama tiraje natural 5700 Cal/h-gas envasado 462100E 4 B Epoxi 3/4" por tierra 4,7 2,4 0,4 4,2 3,2 6,7 1 0,4 1,1 4,05 0,65 2,2 6,66 0,4 3,25 3,15 2,7 2 0,25 0,2 Lavadero Cocina Cochera semi cubierta Habitacion 2 Habitacion 1 Baño Baño Suite Vestidor Habitacion^Jen^JSuite Terraza Planta Alta Planta Baja REFERENCIAS Num. ARTEFACTOS Kcal/h 1 2 3 4 Calefactor TB Calefactor TBU Termotanque 3000 4500 1500 20000 CALCULO DE CAÑERIAS TRAMO tramo long. calc. long. caudal CAÑERIAS adopt. L. eq. M-A A-B B-C A-D B-4 C-5 C-3 3.60 7.70 1.50 4.20 2.30 2.75 4.25 30.95 11.30 12.80 7.80 13.6 14.05 17.05 4.566 3.278 1.288 2.150 0.967 0.161 1" 3/4" 1/2" 3/4" 1/2" 1/2" 3/4" 3000 cal/h Nicho para medidor cap 6m E.M. E.M. L.M. L.M. Epoxi p/ pared 3/4" SPLIT F. y C. R.V. M 1 2 3 4 Calefactor TB 5 6 8 5 6 7 Calefactor TB Calefactor TB 8 Cocina 9000 2500 2000 3000 Split Frio/Calor 7 A B C D D-1 D-2 Long. Cañerias (m) L. Tot. Final Obser. A D B C 1 2 3 4 5 6 7 2.80 14.00 D-6 D-7 20.90 23.15 10.60 21.80 28.70 30.95 0.322 0.483 0.268 0.215 3.278 1/2" 1/2" 1/2" 1/2" Localidad : Neuquen Plano de Instalacion para GAS Natural Entre: Martin Fierro y Uspallata firma del matriculado Calle: San Luis nº 4727 Instalador: Desumvila, Alejandro Fabian matricula nº 17348 Cat. 1º Gonzales Martin firma del propietario certificado nº 12123 SIGAS EPOXI Comedor 3/4" por tierra 1/2" por pared 0.75 1.83 1.14 1.63 4.18 2.96 2.20 2.47 2.73 3.21 1.95 32.90 31.91 24.53 13.07 19.25 17.01 17.78 9.43 13.94 13.13 31.70 1" 3/4" 3/4" 1/2" 3/4" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" M 1" por tierra 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 1/2" por pared 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 MATERIALES MARCA MATRICULA BVG 004/01 TE 1"x1/2" CAÑO 1/2" TIPO CAÑO 1" CAÑO 3/4" \A1;CODO 1" \A1;TE \S3#4; X \S1#2;" \A1;CODO \S3#4;" \A1;CODO \S1#2;" \A1;LLAVE 1" \A1;LLAVE \S3#4;" \A1;LLAVE \S1#2;" \A1;TE \S1#2;" BVG 004/01 0004328F 567196C 658657C A1392795 158067F 0915-1 0936-2 658657C BVG 004/01 0926-3 ACINDGAS ACINDGAS ACINDGAS DEMA TUPY TUPY TUPY TUPY TUPY DIQUE DIQUE DIQUE

Language	Spanish
Drawing Type	Full Project
Category	Mechanical, Electrical & Plumbing (MEP)
