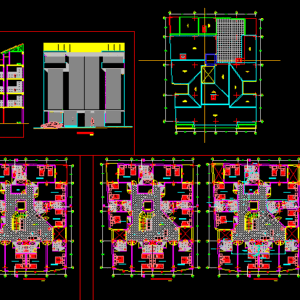

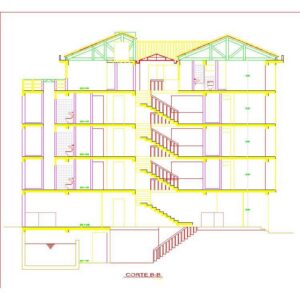

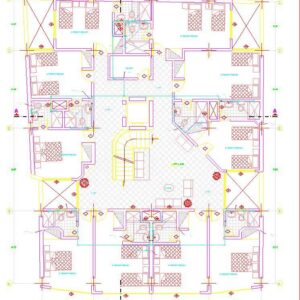

Plan, elevation and cross section view of lodging hotel. Plan has basement plus five floors. Basement has following areas – machine room and water tank. First floor has following areas – living room, hall, cafeteria, luggage storage room, store and toilet. Second, third, fourth floor, has following areas – hall, 10 furnished bed rooms, living room, office and toilets. Fifth level floor has following areas – dinning room, living room, hall, study room, pantry room, kitchen, terrace and toilets. Total foot print area of the plan is approximately 330 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 250 - 499 m² (2691.0 - 5371.2 ft²) |
| Building Features | A/C, Elevator, Escalator |
| Tags | 2d, accommodation, autocad, DWG, elevation, Hotel, lodge, Lodging Hotel, plan, Restaurant, section |
