Lp Gas Isometric DWG Block for AutoCAD

Lp Gas Isometric DWG Block for AutoCAD

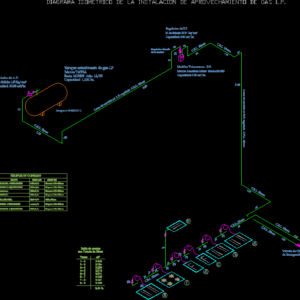

Isometric diagram of a typical installation of LP gas installation of a restaurant – gaslp

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Capacity: lts., Series: year:, Brand: tatsa, Stationary gas tank lp, A.p., P. Of output:, capacity:, P. Of output:, B.p., capacity:, Brand: american meter, Volumetric meter b.p., Closing valve, of emergency, Tank n.p.t., Regulator located, abroad, Line of service in a.p. Regulated c.r.l., C.r.l., Line of service in b.p. Regulated c.r.l., C.r.l., Consumer equipment, equipment, consumption, Connection, griddle, Neoprene, grill, Fryer, salamander, C.r.l., Isometric diagram of the gas utilization facility l.p., stove, griddle, Neoprene, Pressure drop with, section

Raw text data extracted from CAD file:

Capacidad: 1,000 lts. Serie: M-5456 Año: 11/05 Marca: TATSA Tanque estacionario de gas LP a Regulador de A.P. P. de Salida: 1.5 Kg/cm³ Capacidad: 30.00 m³/hr Capacidad: 6.00 m³/hr P. de Salida: 27.9 Gr/cm³ Regulador de B.P. Capacidad: 7.00 m³/hr Marca: American Meter Mod.:AR-250 Medidor Volumetrico - B.P. Valvula de Cierre de Emergencia Tanque a +2.80 N.P.T. Regulador ubicado en el exterior b c d f g e Linea de servicio en A.P. regulada C.R.L. 19mm C.R.L. 19mm C.R.L. 25mm C.R.L. 25mm Linea de servicio en B.P. regulada C.R.L. 25mm C.R.L. 25mm C.R.L. 25mm C.R.L. 25mm C.R.L. 25mm C.R.L. 25mm .70 1.20 .40 5.80 .70 .30 .30 .90 1.10 .30 2.95 1.10 .90 2.10 2.20 .70 .80 .70 .40 .40 .40 .60 .70 EQUIPOS DE CONSUMO EQUIPO CONSUMO CONEXION PLANCHA 4-QUEMADORES 0.666 m3/hr Neopreno 1.20 x Ø13mm PARRILLA 3-QUEMADORES FREIDORA FREIDORA SALAMANDRA C.R.L. Ø13mm a b c d e DIAGRAMA ISOMETRICO DE LA INSTALACION DE APROVECHAMIENTO DE GAS L.P. ESTUFA 4-QUEMADORES f PLANCHA 2-QUEMADORES g 0.360 m3/hr 0.781m3/hr 0.781m3/hr 0.360 m3/hr 0.480m3/hr 0.360m3/hr Neopreno 1.20 x Ø13mm Neopreno 1.20 x Ø13mm Neopreno 1.20 x Ø13mm Neopreno 1.20 x Ø13mm Neopreno 1.20 x Ø13mm (1) (2) (3) (2) (5) (6) (7 (8) (9) (4) \W3.74613; Caida de presion con Tuberia de 25mm Tramo \U+0394P 1 - 2 3.608 2 - 3 0.064 3 - 4 0.036 4 - 5 0.016 5 - 6 0.014 6 - 7 0.005 7 - 8 0.001 8 - 9 0.002 3.74 %

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, diagram, DWG, einrichtungen, facilities, gas, gesundheit, installation, isometric, l'approvisionnement en eau, la sant, le gaz, lp, machine room, maquinas, maschinenrauminstallations, provision, Restaurant, typical, wasser bestimmung, water
