Pedestrian Bridge DWG Plan for AutoCAD

Pedestrian Bridge DWG Plan for AutoCAD

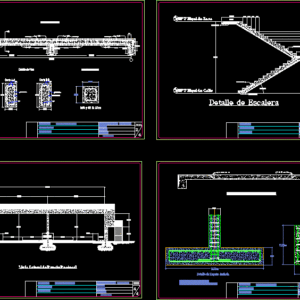

Plans for safe pedestrian bridge movement of persons. Contains details of beams slabs, footings, stairs and profile view to the proper assessment of sizing etc.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

column detail, isolated shoe detail, location :, leaf, pedestrian bridge, owner :, drew :, metric scale :, design :, aprobo :, project :, place and date :, npt street level, rest, npt level of slab, slab

Raw text data extracted from CAD file:

W GV D H Y D O S W S D Y H WV TP D \A1;0.35 m \A1;0.35 m \A1;0.25 m \A1;0.30m 30 cm 30 cm 30 cm 30 cm 1.5m 2.00m \A1;2.55 m \A1;31°15´49´´ \A1;5.10 m \A1;0.30 m \A1;0.30 m \A1;0.30 m \A1;21.00 m \A1;10.5 m \A1;10.5 m \A1;5.10 m \A1;5.10 m \A1;3.65 m \A1;3.65 m \A1;3.65 m \A1;3.65 m \A1;1.00m \A1;1.00m \A1;1.20 m \A1;1.20 m \A1;2.00 m \A1;2.55 m \A1;2.55 m 0.35 m 0.35 m Detalle de columna 8#3 y #3 @ 15cm Detalle de Zapata Aislada Acero Principal 7#6 @ 25 cm AS Acero por Temperatura 13#3 @ 15 cm AS 0.25 m \A1;2.00m UBICACION: 4 1 HOJA PUENTE PEATONAL Metrica 1:100 PROPIETARIO: DIBUJÓ: ESCALA METRICA: DISEÑO: APROBO: PROYECTO: \A1;2.00m \A1;2.00m Acero Principal 7#6 @ 25 cm AS LUGAR Y FECHA: 0.30m Asc=2#6 Asc=2#6 A A \A1;L.D=0.25m \A1;L.D=0.25m \A1;10.50m \A1;L.D=3.5m Bas=2#6 \A1;0.20m \A1;0.45m 4#6 \A1;Corte B-B \A1;Corte A-A 2#6 #3@0.20m \A1;0.20m \A1;0.45m \A1;5cm de recub. #3@0.20m \A1;Detalle de Armado de Vigas \A1;Detalle de Viga 2#6 2#6 \A1;0.25m Asc=2#6 Asc=2#6 B B \A1;L.D=0.25m \A1;L.D=2.65m Bas=2#6 Asc=2#6 Asc=2#6 \A1;L.D=0.25m \A1;L.D=0.25m \A1;10.50m \A1;L.D=3.5m Bas=2#6 \A1;0.25m Asc=2#6 Asc=2#6 \A1;L.D=0.25m \A1;L.D=2.65m Bas=2#6 \A1;21.00m # 3 @ 25 cm AS # 3 @ 25 cm AS \LDetalle de Losa Monolitica de e=20 cm NPT Nivel de Calle 30 cm 30 cm 30 cm 30 cm # 5 @ 22cm # 4 @ 22 cm 1.5m # 4 @ 22 cm Descanso # 5 @ 22cm # 4 @ 22 cm \LDetalle de Escalera NPT Nivel de Losa 2.00m Losa 2.55 m 31°15´49´´ 5.10 m 0.30 m 0.30 m 0.30 m 18 .50cm 18 .50cm 18 .50cm 18 .50cm 21.00 m 10.5 m 10.5 m 5.10 m 5.10 m \A1;Mediana 3.65 m 3.65 m 3.65 m 3.65 m 1.00m 1.00m 1.20 m 1.20 m 2.00 m 2.55 m 2.55 m \A1;\LVista Lateral de Puente Peatonal UBICACION: 4 2 HOJA PUENTE PEATONAL Metrica 1:100 PROPIETARIO: DIBUJÓ: ESCALA METRICA: DISEÑO: APROBO: PROYECTO: LUGAR Y FECHA: UBICACION: 4 3 HOJA Metrica 1:100 PROPIETARIO: DIBUJÓ: ESCALA METRICA: DISEÑO: APROBO: PROYECTO: LUGAR Y FECHA: UBICACION: 4 4 HOJA PUENTE PEATONAL Metrica 1:100 PROPIETARIO: DIBUJÓ: ESCALA METRICA: DISEÑO: APROBO: PROYECTO: LUGAR Y FECHA:
