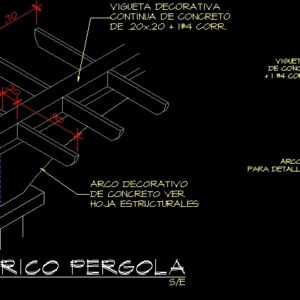

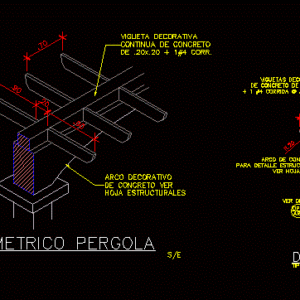

Pergola DWG Section for AutoCAD

Pergola DWG Section for AutoCAD

DETAIL – plants – sections – views – Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

p, det, see detail, continuous decorative concrete joist., decorative concrete beams of esp. run, concrete decorative bow see structural sheet, dpg, isometric pergola, typical, see detail, dpg, decorative concrete beams of esp. run, concrete arch for structural detail see sheet, continuous decorative concrete joist., pergola detail, typical, dpg, scale

Raw text data extracted from CAD file:

PAG DET \A1;.90 \A1;.20 \A1;.90 \A1;.20 \A1;.70 \A1;R.20 \A1;.70 VER DETALLE VIGUETA DECORATIVA CONTINUA DE CONCRETO DE .20x.20 + 1#4 CORR. VIGUETAS DECORATIVAS DE CONCRETO DE .05 ESP. + 1 #4 CORRIDA @ .70 C.@C. ARCO DECORATIVO DE CONCRETO VER HOJA ESTRUCTURALES AR6 DPG .90 .90 .20 S/E ISOMETRICO PERGOLA TIPICO 0.9000000000000057 0.2000000000000028 0.9000000000000057 0.2000000000000101 0.6999999999999994 5 VER DETALLE AR6 DPG VIGUETAS DECORATIVAS DE CONCRETO DE .05 ESP. + 1 #4 CORRIDA @ .70 C.@C. ARCO DE CONCRETO PARA DETALLE ESTRUCTURAL VER HOJA ES-? VIGUETA DECORATIVA CONTINUA DE CONCRETO DE .20x.20 + 1#4 CORR. DETALLE PERGOLA TIPICO AR6 DPG ESCALA 1:25

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, de moulage, DETAIL, details, DWG, gesims, molding, pergola, plants, section, sections, views, Wood
