Photovoltaic Panel Detail DWG Detail for AutoCAD

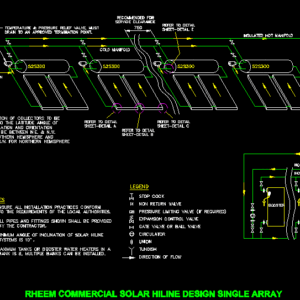

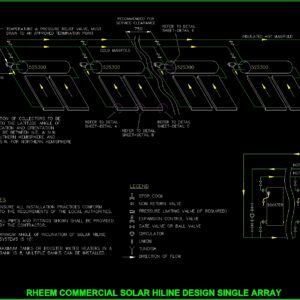

Photovoltaic Panel Detail (Hiline – single)
Drawing labels, details, and other text information extracted from the CAD file:
rheem commercial solar hiline design single array, solar hiline single array, notes, ensure all installation practices conform to the requirements of the local authorities. all pipes and fittings shown shall be provided by the contractor. minimum angle of inclination of solar hiline systems is maximum tanks or booster water heaters in bank is multiple banks can be installed., insulated hot manifold, to drain, refer to detail, cold water inlet pipe, inclination of collectors to be equal to the latitude angle of the location and orientation should be between n.e. n.w. for southern hemisphere and s.e. s.w. for northern hemisphere, hot water flow, booster, hot water return, to hot water outlets or booster water heaters., refer to detail, temperature pressure relief must drain to an approved termination point., cold manifold, recommended for service clearance, gate valve or ball valve, pressure limiting valve, direction of flow, non return valve, expansion control valve, tundish, circulator, union, legend, stop cock
Raw text data extracted from CAD file:
| Language | English |
| Drawing Type | Detail |
| Category | Mechanical, Electrical & Plumbing (MEP) |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | |
| Measurement Units | |
| Footprint Area | |
| Building Features | |
| Tags | autocad, DETAIL, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, panel, photovoltaic, provision, single, wasser bestimmung, water |
