Plant Of Mixtures DWG Block for AutoCAD

Design mixtures plant for extrusion pipes of PVC

Drawing labels, details, and other text information extracted from the CAD file:

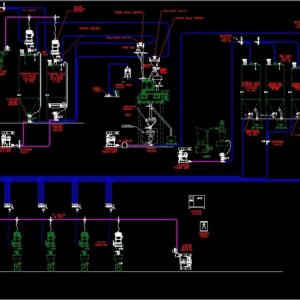

psi, cfm, sheet, scale, compounding plant modifications schematic flow diagram, dwn., ck’d., date, title, contract, hand add, liquid weigh vessel, pressure power unit, liquid pump, rotary airlock, surge hopper, control system, filter receiver, control panel, monorail and hoist, inlet filter, vacuum breaker valve, diverter valve, bin vent, existing rotary airlock, splitter valve, double batch hopper, take-away hopper, thru, new equipment, existing equipment, air conveying lines, material conveying lines, grinder, box, electric, air cooler, screener, future

Raw text data extracted from CAD file:

PSI CFM ZS-1,2 S A 80 2 ZS-1,2 SHEET SCALE COMPOUNDING PLANT MODIFICATIONS SCHEMATIC FLOW DIAGRAM DWN. CK'D. DATE DATE TITLE CONTRACT \FAVGARDN.TTF;None 1 of 1 SILO #3 COMPOUND STORAGE SILO, NEW (BY OTHERS) 30 TON SILO #2 COMPOUND STORAGE SILO NEW (BY OTHERS) 30 TON SILO #1 COMPOUND STORAGE SILO NEW (BY OTHERS) 30 TON \A1;RESIN SCALE HOPPER HAND ADD FILL/PASS VALVE LIQUID WEIGH VESSEL \A1;CACO3 SCALE HOPPER FILL/PASS VALVE PRESSURE POWER UNIT BULK BAG UNLOADING STATION W/INTEGRATED DUST COLLECTION RESIN & CaCO3 LIQUID PUMP STORAGE SILO PVC RESIN (EXISTING) 30 TON STORAGE SILO CAL. CARB. (EXISTING) 5 TON ROTARY AIRLOCK SURGE HOPPER BIN VENT W/FAN BIN VENT FILTER (TYP. 3) CONTROL SYSTEM HIGH LEVEL INDICATOR (TYP. 3) LOW LEVEL INDICATOR (TYP. 3) CK'D. DATE PRESSURE POWER UNIT FILTER RECEIVER "T" VALVE (5 TYP) VACUUM BLOWER 5M/15 HP CONTROL PANEL MONORAIL AND HOIST STORAGE SILO REGRIND GRAY (EXISTING) 10 TON INLET FILTER VACUUM BREAKER VALVE DIVERTER VALVE FILTER RECEIVER (2 TYP) "T" VALVE VACUUM POWER UNIT (EXISTING) BIN VENT EXISTING ROTARY AIRLOCK SPLITTER VALVE DOUBLE BATCH HOPPER ROTARY AIRLOCK EXISTING ROTARY AIRLOCK TAKE-AWAY HOPPER THRU DIVERTER VALVE (TYP. 2) DIVERTER VALVE ROTARY AIRLOCK NEW EQUIPMENT EXISTING EQUIPMENT AIR CONVEYING LINES MATERIAL CONVEYING LINES DIVERTER VALVE GRINDER DIVERTER VALVE (TYP. 2) BIN VENT FILTER (TYP. 3) PRESSURE POWER UNIT DIVERTER VALVE VTA 2-PORT BOX (6 TYP) STORAGE SILO REGRIND WHITE (EXISTING) 5 TON STORAGE SILO REGRIND WHITE (EXISTING) 10 TON MAINTENANCE GATE VALVE (6 TYP.) BOX ELECTRIC AIR COOLER SCREENER FUTURE BOX BOX BOX BOX BOX BOX DISCHARGE PORT W/BFLY. VALVE (6 TYP.)

Language	English
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, block, Design, DWG, factory, industrial building, pipes, plant, pvc
