Plant Polisport Court DWG Detail for AutoCAD

Plant Polisport Court DWG Detail for AutoCAD

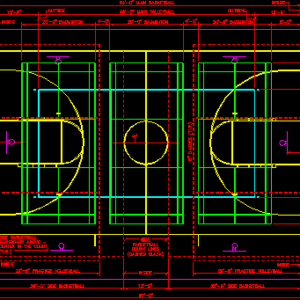

Plane withdetails draw of lines polisport court

Drawing labels, details, and other text information extracted from the CAD file:

inside, outside, gym floor striping for new community centers

Raw text data extracted from CAD file:

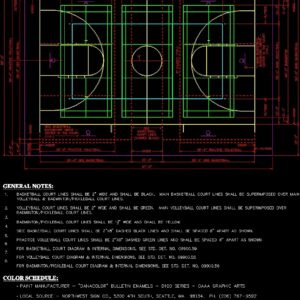

\LGENERAL NOTES: \A1;BASKETBALL COURT LINES SHALL BE 2" WIDE AND SHALL BE BLACK. MAIN BASKETBALL COURT LINES SHALL BE SUPERIMPOSED OVER MAIN VOLLEYBALL & BADMINTON/PICKLEBALL COURT LINES. VOLLEYBALL COURT LINES SHALL BE 2" WIDE AND SHALL BE GREEN. MAIN VOLLEYBALL COURT LINES SHALL BE SUPERIMPOSED OVER BADMINTON/PICKLEBALL COURT LINES. BADMINTON/PICKLEBALL COURT LINES SHALL BE 1\S1/2;" WIDE AND SHALL BE YELLOW. SIDE BASKETBALL COURT LINES SHALL BE 2"X8" DASHED BLACK LINES AND SHALL BE SPACED 8" APART AS SHOWN. PRACTICE VOLLEYBALL COURT LINES SHALL BE 2"X8" DASHED GREEN LINES AND SHALL BE SPACED 8" APART AS SHOWN. FOR BASKETBALL COURT DIAGRAM & INTERNAL DIMENSIONS, SEE STD. DET. NO. 09900.59 FOR VOLLEYBALL COURT DIAGRAM & INTERNAL DIMENSIONS, SEE STD. DET. NO. 09900.55 FOR BADMINTON/PICKLEBALL COURT DIAGRAM & INTERNAL DIMENSIONS, SEE STD. DET. NO. 09900.56 1. 2. 3. 4. 5. 6. 7. 8. \LCOLOR SCHEDULE: B PAINT MANUFACTURER - "DANACOLOR" BULLETIN ENAMELS - D100 SERIES - OAAA GRAPHIC ARTS B LOCAL SOURCE - NORTHWEST SIGN CO., 5300 4TH SOUTH, SEATTLE, WA 98134. PH. (206) 767-9592 \LCOLORS: B BLACK - D170 B (EMERALD) GREEN - D142 B (SUPER) WHITE LETTERING ENAMEL - D182 B (FIRE) RED - D102 B (PRIMROSE) YELLOW - D130 6'-0" 84'-0" MAIN BASKETBALL 7'-0" INSIDE 12'-6" 59'-0" MAIN VOLLEYBALL 12'-6" OUTSIDE OUTSIDE 8'-0" 20'-0" BADMINTON 4'-0" 20'-0" BADMINTON 4'-0" 20'-0" BADMINTON 6'-0" INSIDE 6-0" 4'-6" OUTSIDE 59'-0" PRACTICE VOLLEYBALL 68'-0" 56-0" SIDE BASKETBALL INSIDE 4'-6" 6'-0" OUTSIDE SIDE BASKETBALL BACKBOARD ABOVE - CENTER IN THE COURT (TYP.) 29'-6" PRACTICE VOLLEYBALL 36'-0" SIDE BASKETBALL INSIDE 12'-0" 36'-0" SIDE BASKETBALL 29'-6" PRACTICE VOLLEYBALL 97'-0" SIDE BASKETBALL COURT LINES (DASHED BLACK) INSIDE OUTSIDE INSIDE 12'-0" 29'-0" MAIN VOLLEYBALL 10'-3" 3'-0" 44'-0" BADMINTON 3'-0" 50'-0" MAIN BASKETBALL INSIDE INSIDE OUTSIDE OUTSIDE C L MAIN BASKETBALL BACKBOARD ABOVE - CENTER IN THE COURT (TYP.) 8" DASHES (TYP.) INSIDE 10'-3" GYM FLOOR STRIPING FOR NEW COMMUNITY CENTERS
