Pluvial Water DWG Block for AutoCAD

Pluvial Water DWG Block for AutoCAD

System of pluvial water uses

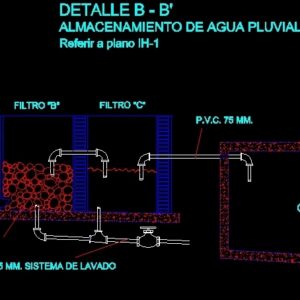

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

refer plane, detail b ‘, rainwater storage, filter, gravel cm., tezontle cm, p.v.c. mm. washing system, tank, to the water tank, filter, bomb, filter, p.v.c. mm.

Raw text data extracted from CAD file:

Referir a plano IH-1 DETALLE B - B' ALMACENAMIENTO DE AGUA PLUVIAL FILTRO "A" FILTRO "B" GRAVA 5 CM. 0 GRAVA 2.5 CM. 0 TEZONTLE 5 CM 0 P.V.C. 75 MM. SISTEMA DE LAVADO CISTERNA AL TINACO FILTRO BOMBA FILTRO "C" P.V.C. 75 MM.

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
