Pond Metal DWG Block for AutoCAD

METAL POND – Plant – cut – facade – cimentacion – structure – hydraulic systems and health

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

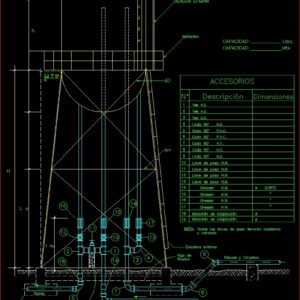

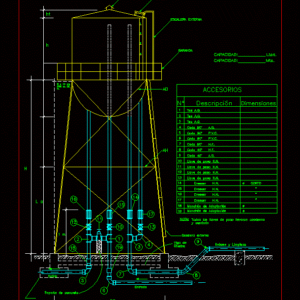

fig., connections for elevated pond, entrance, exit by-pass, overflow and cleaning, ventilation, manhole, external staircase, railing, by m. of, the, entry, exit, note:, input and output is PVC, the diameter of the accessories will be set according to the diameter of the pipes, entry and exit, accessories, all the keys of passage will carry ccadenna, and padlock , beam, brace, overflow and cleaning, external staircase, capacity :, capacity: mts., ltsa., concrete support, foundation, description, dimensions, tee ag, stopcock hn, dresser hn, adaptation patch, ø short

Raw text data extracted from CAD file:

X 0.64 0.67 0.70 0.75 0.81 0.87 0.93 H 0.75 0.83 0.87 0.97 1.07 1.17 1.28 H 0.70 0.78 0.82 0.92 1.02 1.12 1.23 V 0.467 0.541 0.593 0.709 0.845 0.993 1.162 V 0.459 0.529 0.577 0.680 0.796 0.918 1.056 R D E A 3 11 2 13 14 15 17 16 13 ACR/2001 Nº 2 FIG. CONEXIONES PARA ESTANQUE ELEVADO ENTRADA,SALIDA BY-PASS,REBOSE Y LIMPIEZA 1 2 3 4 VENTILACION BOCA DE VISITA ESCALERA EXTERNA BARANDA 5 a 10 cm. POR m. DE H. ht h H L a 1 m. AD AH DF Entrada Salida NOTA: LOS MANCHONES DE ADAPTACION Nº 18 Y 19,SE USARAN CUANDO LA TUBERIA DE ENTRADA Y SALIDA SEA DE P.V.C. EL DIAMETRO DE LOS ACCESORIOS SE FIJARAN SEGUN EL DIAMETRO DE LAS TUBERIAS DE ENTRADA Y SALIDA ACCESORIOS NOTA: Todas las llaves de paso llevaran ccadenna y candado Viga de Riostra Rebose y Limpieza Escalera externa CAPACIDAD: CAPACIDAD: Mts. Ltsa. Soporte de concreto Fundación 16 12 2 1 3 4 5 6 7 18 19 11 10 13 15 14 17 9 8 Descripción Dimensiones Nº 1 Tee A.G. 2 Tee A.G. Tee A.G. 3 4 Codo 90° A.G. 5 Codo 90° P.V.C. 6 Codo 90° P.V.C. 7 Codo 90° H.F. Codo 45° H.F. 8 9 Codo 45° A.G. 10 Llave de paso H.N. 11 Llave de paso H.N. 12 Llave de paso H.N. 13 Llave de paso H.N. Dresser H.N. 14 15 Dresser H.N. Dresser H.N. 16 Dresser H.N. 17 18 Manchón de Adaptación 19 Manchón de Adaptación Ø CORTO " Ø Ø " "

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Concrete, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	à gaz, agua, autocad, block, cimentacion, Cut, DWG, facade, gas, health, híbrido, hybrid, hybrides, hydraulic, l'eau, metal, plant, pond, reservoir, structure, systems, tank, tank water reserve tank, tanque, wasser, water
