Popular Housing DWG Full Project for AutoCAD

Popular Housing DWG Full Project for AutoCAD

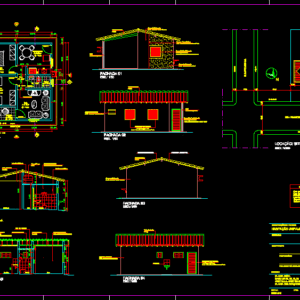

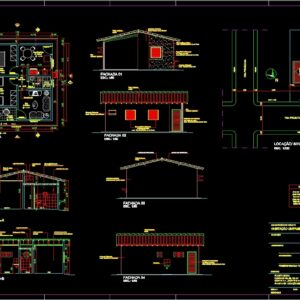

Complete project popular house in area 53;90m2

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

pre-fabricated iron plate finish. synthetic enamel in black color, masonry plastered finish. hydracor in white color, air conditioning, feathers, prefabricated slab, address, single family dwelling, design identification, indicated, walk-in plasterboard lining, living room, kitchen, bwc, room ii, projection roofing, driveway, projection slab, apparent concrete pillar, masonry plastered finish. hydracor in the color blue, sidewalk, crimp in low relief finished. synthetic enamel in black color, frame of areas, ceramic, plastered masonry

Raw text data extracted from CAD file:

L-910-S \A1;1.50 \A1;7.00 \A1;1.50 \A1;12.91 \A1;1.50 \A1;10.00 \A1;1.50 \A1;12.80 \A1;10.53 \A1;1.765 \A1;7.00 \A1;1.765 \A1;7.70 \A1;8.00 \A1;.50 \A1;.50 \A1;.15 \A1;.15 \A1;.50 \A1;.50 \A1;.15 \A1;3.275 \A1;.15 \A1;.15 \A1;.40 \A1;3.275 \A1;7.00 \A1;1.00 \A1;.70 \A1;.40 \A1;.15 \A1;1.20 \A1;.15 \A1;.875 \A1;.40 \A1;.15 \A1;.15 \A1;1.20 \A1;.80 \A1;.15 \A1;.15 \A1;2.25 \A1;.50 \A1;.50 \A1;.15 \A1;.15 \A1;1.35 \A1;.50 \A1;.50 \A1;.15 \A1;3.275 \A1;.15 \A1;.15 \A1;1.20 \A1;7.00 \A1;3.275 \A1;2.90 \A1;2.90 \A1;.15 \A1;7.70 \A1;7.70 \A1;3.00 \A1;3.00 \A1;.10 \A1;2.40 \A1;.15 \A1;2.40 \A1;.02 \A1;.50 \A1;1.60 \A1;.10 \A1;60 \A1;1.00 \A1;1.10 \A1;.10 \A1;60 \A1;3.60 \A1;1.10 \A1;2.70 \A1;.10 \A1;2.40 \A1;.30 \A1;1.60 \A1;.50 \A1;1.00 \A1;1.10 \A1;20 \A1;60 \A1;2.70 \A1;.90 \A1;60 \A1;.50 \A1;1.60 \A1;3.14 \A1;28.50 Quarto A= 9.82m² Quarto A=9.50m² 5 6.999999999999886 + 0.15 + 0.15 5 7.000000000000114 Esquadria Pre-Fabricada em Chapa de Ferro Acab. Esmalte sintético na cor Preto 5 0.5 1.600000000000023 CORTE A-A ESC.: 1/50 CORTE B-B ESC.: 1/50 Alvenaria Rebocada Acab. Hidracor na cor Branco 5 1.099999999999994 0.1000000000000227 5 7.700000000000017 5 5 0.1499999999999204 1.35000000000008 0.5000000000013642 0.4999999999999716 PLANTA BAIXA ESC.: 1/50 0.1499915215915735 0.149880138430035 1.200119861570045 Ar- Cond. 0.4000000000011141 0.1500000000000909 1.00x100 /1.10 1.00x100 /1.10 F2 A 0.5 0.5000000000012506 0.1500000000000909 0.1500000000000341 PENAS VERMELHO -01 VERDE -02 AMARELO -03 CYAN -05 MAGENTA -06 BLUE -06 COLOR 08 -01 COLOR 09 -01 COLOR 10 -01 COLOR 11 -04 COLOR 251 -01 Caixa D'Água 500 l Laje Pré-Moldada Alvenaria Rebocada Acab. Hidracor na cor Branco \fArial|b0|i0|c0|p34;ASSINATURAS ENDEREÇO \fArial|b0|i0|c0|p34;DESENHO HABITAÇÃO UNIFAMILIAR IDENTIFICAÇÃO DO PROJETO INDICADAS PLANTA BAIXA FACHADA 01, 02, 03, 04 CORTE A-A , CORTE B-B PLANTA DE LOCAÇÃO/SITUAÇÃO E COBERTURA \fArial|b0|i0|c0|p34;ESCALA \A1;Telha Cerâmica I=25% Alvenaria Rebocada Acab. Hidracor na cor Branco 5 2.399999999999977 Forro de gesso pé-solto Sala 1.0 1.099999999999994 5 5 5 Laje Pré-Moldada Cerâmica h=1.50m 0.9000000000000057 Cozinha B.W.C. 0.2999999999999545 1.600000000000023 0.5 Alvenaria Rebocada Acab. Hidracor na cor Branco 5 5 2.399999999999949 0.0200000000000102 0.5000000000000284 1.599999999999966 5 B.W.C. Cerâmica h=1.50m 5 Forro de gesso pé-solto Quarto II Circ. 5 2.399999999999977 5 5 Alvenaria Rebocada Acab. Hidracor na cor Branco Esquadria Pre-Fabricada em Chapa de Ferro Acab. Esmalte sintético na cor Preto \A1;Telha Cerâmica I=25% \fArial|b0|i0|c0|p34;01 \fArial|b0|i0|c0|p34;DATA \fArial|b0|i0|c0|p34;OPERADOR DE CAD \fArial|b0|i0|c0|p34;PROJETOS/ CÁLCULO / CONSTRUÇÃO \fArial|b0|i0|c0|p34;PROPRIETÁRIO N RUA PROJETADA 7.699999999999875 5 0.80x2.10 Esquadria Pre-Fabricada em Chapa de Ferro Acab. Esmalte sintético na cor Preto 2.900000000000148 Alvenaria Rebocada Acab. Hidracor na cor Branco 0.5 0.5 0.1499999999999773 0.1500000000003183 B Projeção Cobertura 0.80x2.10 0.1499999999999773 F1 + 0.10 + 0.05 + 0.0 + 0.15 Calçada 5 1.00x100 /1.10 ESC.: 1/50 FACHADA 02 F4 A + 0.15 0.9999999999999716 0.6999999999999318 0.4000000000000909 0.1499999999999204 1.200000000000102 0.1499999999999204 1.20 0.55 + 0.13 + 0.11 1.00x0.50 /1.60 0.50x0.50 /1.60 5 0.70x2.10 0.70x2.10 0.1500000000000909 1.199999999999989 0.8000000000000398 0.1499999999999773 0.1499999999998636 + 0.15 Projeção Laje 2.252500000000055 0.60x2.10 ESC.: 1/50 FACHADA 01 \A1;Telha Cerâmica I=25% Pilar Concreto Aparente Esquadria Pre-Fabricada em Chapa de Ferro Acab. Esmalte sintético na cor Preto Alvenaria Rebocada Acab. Hidracor na cor Azul Esquadria Pre-Fabricada em Chapa de Ferro Acab. Esmalte sintético na cor Preto Pilar Concreto Aparente Q-01 / L-01 RUA PROJETADA calçada calçada 0.5000000000003411 0.5000000000001137 0.1499999999999773 0.1499999999998636 B 0.1499999999999773 F3 0.4000000000001194 3.275 \A1;Telha Cerâmica I=25% Friso em Baixo Relevo Acab. Esmalte sintético na cor Preto Alvenaria Rebocada Acab. Hidracor na cor Branco 12.79999999999984 calçada Q-02 / L-01 Q-03 / L-03 I = 25 % I = 25 % calçada Área do Terreno..................300.10m² Área Construída....................53.90m² Área de Piso.........................47.14m² Área de Cobertura.................69.60m² Taxa de Ocupação................17.96% Indice de Aproveitamento..........0.18 QUADRO DE ÁREAS Sala A=9.50m² Varanda A=4.62m² Copa/Cozinha A= 9.00m² B.W.C. A=2.70m² Circ. A=2.00m² Cerâmica 1.5 7.0 1.500000000000455 12.90712102720636 1.5 10.0 1.500000000000227 10.52999999999975 1.764999999998963 7.000000000001819 1.764999999998963 7.700000000000045 8.0 LOCAÇÃO/ SITUAÇÃO/ COBERTURA ESC.: 1/200 FACHADA 03 ESC.: 1/50 FACHADA 04 ESC.: 1/50 ALVENARIA REBOCADA ALVENARIA REBOCADA 3.139999955999713 28.49999999999989

Language	Portuguese
Drawing Type	Full Project
Category	House
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry, Other
Measurement Units	Metric
Footprint Area
Building Features	A/C
