Pump Connection DWG Block for AutoCAD

Pump Connection DWG Block for AutoCAD

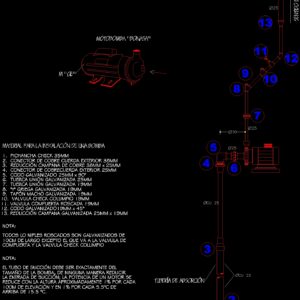

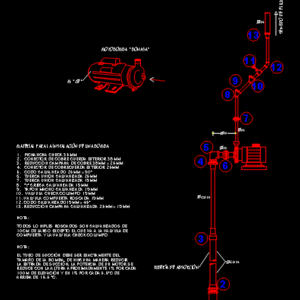

Isometric diagram Connection water pump

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

note:, The power input of an engine is, Size in no way reduce, The suction tube must be exactly, Of elevation in each of, Reduces with height approximately for each, above, Pichancha, Absorption line, Threaded gate valve, Galvanized elbow, Galvanized union nut, Greek galvanized, Male plug, galvanized, Check swing valve, Outer rope copper connector, Copper bell reduction, Outer copper socket connector, Pichancha check, Material for the installation of a pump, elbow, Galvanized hood reduction, Swing gate, Length of the valve except the valve, All the threaded nipples are galvanized, note:, Pump connection detail, Motor pump, Sense of flow

Raw text data extracted from CAD file:

NOTA: LA ENTRADA DE SUCCIÓN; LA POTENCIA DE UN MOTOR SE TAMAÑO DE LA BOMBA, DE NINGUNA MANERA REDUCIR EL TUBO DE SUCCIÓN DEBE SER EXACTAMENTE DEL 100M DE ELEVACIÓN Y EN 1% POR CADA 5.5°C DE REDUCE CON LA ALTURA APROXIMADAMENTE 1% POR CADA ARRIBA DE 15.5 °C. PICHANCHA TUBERÍA DE ABSORCIÓN 1 CU 25 2 11. VALVULA COMPUERTA ROSCADA 19MM 5. CODO GALVANIZADO 25MM x 90° 6. TUERCA UNIÓN GALVANIZADA 25MM 7. TUERCA UNIÓN GALVANIZADA 19MM 8. "Y" GRIEGA GALVANIZADA 19MM 9. TAPÓN MACHO GALVANIZADA 19MM 10. VALVULA CHECK COLUMPIO 19MM 2. CONECTOR DE COBRE CUERDA EXTERIOR 38MM 3. REDUCCIÓN CAMPANA DE COBRE 38MM x 25MM 4. CONECTOR DE COBRECUERDA EXTERIOR 25MM 1. PICHANCHA CHECK 35MM MATERIAL PARA LA INSTALACIÓN DE UNA BOMBA 12. CODO GALVANIZADO19MM x 45° 13. REDUCCIÓN CAMPANA GALVANIZADA 25MM x 19MM COMPUERTA Y LA VALVULA CHECK COLUMPIO 10CM DE LARGO EXCEPTO EL QUE VA A LA VALVULA DE TODOS LO NIPLES ROSCADOS SON GALVANIZADOS DE M "GE" NOTA: 4 3 CU 25 5 DETALLE DE CONEXIÓN DE BOMBA MOTOBOMBA "BONASA" 11 12 6 7 25 25 10 9 8 10 SENTIDO DE FLUJO 25 13

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, connection, diagram, DWG, einrichtungen, facilities, gas, gesundheit, isometric, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, pipe, provision, pump, wasser bestimmung, water
