Pump Detail DWG Detail for AutoCAD

Pump Detail DWG Detail for AutoCAD

Mechanical guide for a pump connection

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail pump connection, galvanized hood reduction, Galvanized elbow, copper pipe, threaded gate valve, check pichancha, outer rope copper connector, copper pipe, galvanized union nut, Galvanized elbow, copper pipe, copper bell reduction, swing check valve, copper pipe, galvanized, galvanized union nut, male plug, galvanized

Raw text data extracted from CAD file:

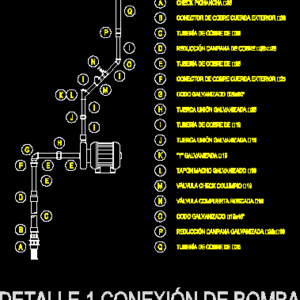

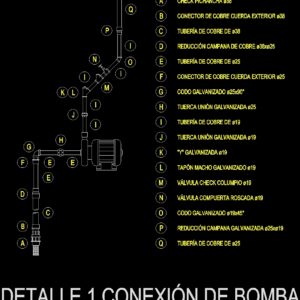

D DETALLE 1 CONEXIÓN DE BOMBA B A C REDUCCIÓN CAMPANA GALVANIZADA ø25xø19 P O Q CODO GALVANIZADO ø19x45° TUBERÍA DE COBRE DE ø25 N VÁLVULA COMPUERTA ROSCADA ø19 G F Q O I M I N I K I L P I E H E E J A CHECK PICHANCHA ø38 CONECTOR DE COBRE CUERDA EXTERIOR ø25 CONECTOR DE COBRE CUERDA EXTERIOR ø38 B E H G F D TUBERÍA DE COBRE DE ø25 TUERCA UNIÓN GALVANIZADA ø25 CODO GALVANIZADO ø25x90° TUBERÍA DE COBRE DE ø38 C REDUCCIÓN CAMPANA DE COBRE ø38xø25 M I L K J VÁLVULA CHECK COLUMPIO ø19 TUBERÍA DE COBRE DE ø19 "Y" GALVANIZADA ø19 TUERCA UNIÓN GALVANIZADA ø19 TAPÓN MACHO GALVANIZADO ø19

Language	Spanish
Drawing Type	Detail
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, bomba, bomba de água, connection, DETAIL, DWG, guide, mechanical, pipe, pompe, pompe à eau, pump, pumpe, rohr, tubulação, tuyaux, wasserpumpe, water pump
