Pump Station DWG Section for AutoCAD

Pump Station DWG Section for AutoCAD

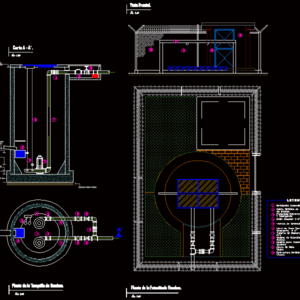

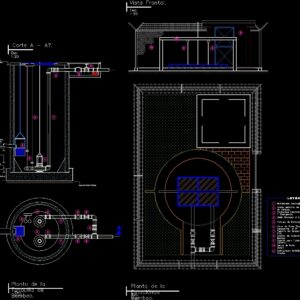

Pump Station – Plants – Sections

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

front view., cut, esc:, chopped stone base, min level, bottom level:, quota, max level:, emergency level:, esc:, chain of fastening of pumps, metal frame for winches., house for control board., close up of cyclone mesh, gate-type shut-off valve, retention valve, pvc discharge pipe, floating electric emergency control., metal basket for solids retention., submersible motor pump: hp., marriage dresser, esc:, plant of the pumping station., esc:, pumping tanquilla plant., diameter: mm, quota

Raw text data extracted from CAD file:

Vista Frontal. Corte A - A´. Esc: 1:20 4 5 7 1 4 2 6 Base de Piedra Picada Nivel Min.: 96.550 Nivel Fondo.: 96.350 5 7 4 3 3 1 1 Cota: 97.650 Nivel Max.: 96.850 Nivel Emergencia.: 97.450 Esc: 1:20 7 2 4 8 5 6 6 8 Cadena de Sujeción de Bombas Estructura Metálica para Winche. Caseta para Tablero de Control. 11 10 Cerca de Malla Ciclon 9 8 8 11 10 9 L E Y E N D A\H0.9x; Llave de Paso Tipo Compuerta Ø 6" Valvula de Retención 6" Tubería de Descarga Ø 6" PVC Flotantes Eléctricos de Control Y Emergencia. Cesta Metálica de Retención de Solidos. Motobomba Sumergible Cap.: 5 Hp. 5 6 7 3 4 Unión Dresser d 6" 2 1 Esc: 1:20 Planta de la Estaciónde Bombeo. Esc: 1:20 Planta de la Tanquilla de Bombeo. A A´ Diámetro: 250 mm 0.40 m Cota: 100.460

Language	Spanish
Drawing Type	Section
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, bomba, bomba de água, DWG, pipe, plants, pompe, pompe à eau, pump, pumpe, rohr, section, sections, Station, tubulação, tuyaux, wasserpumpe, water pump
