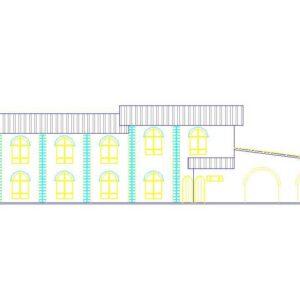

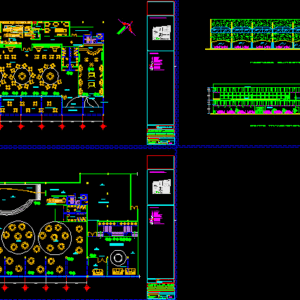

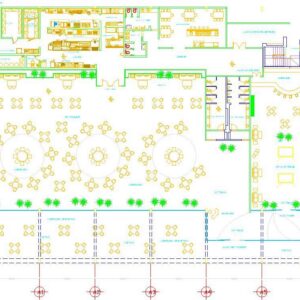

Plan and elevation view of restaurant. Plan has two floors. First floor has following areas – portico, dining area in portico (capacity12 table), main entrance, lobby, reception, dining room (capacity 38 table), restaurant, kitchen, bar, elevator, 2 pool table, office, freezer room, garbage room, pantry room, wash area and toilets. Second floor has following areas – lobby, waiting room, ware house, event room, cleaning room, kitchen, hall with36 dining table and toilets. Total foot print area of the plan is approximately 1650 sq meters.
| Language | Spanish |
| Drawing Type | Plan |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
  |
| File Type | dwg |
| Materials | Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood |
| Measurement Units | Metric |
| Footprint Area | 1000 - 2499 m² (10763.9 - 26899.0 ft²) |
| Building Features | A/C |
| Tags | 2d, autocad, DWG, elevation, Hotel, plan, Restaurant, section |
