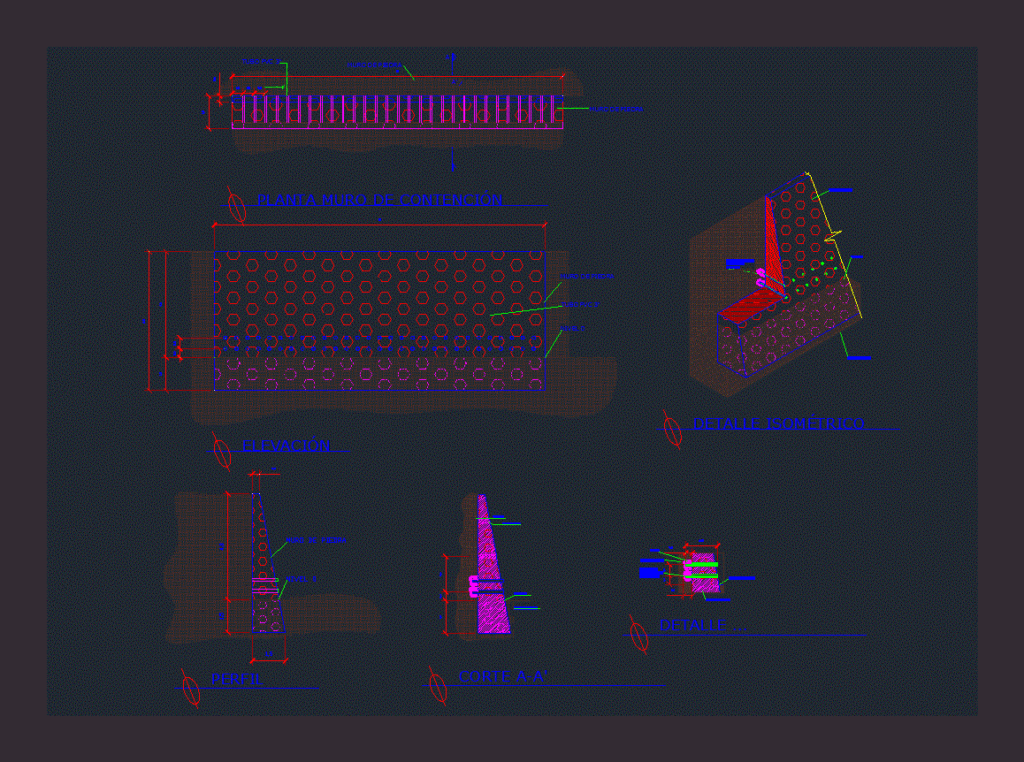

Construction details of a simple wall. Including in it; necessary for the interpretation of a wall of containment easy and useful drawings. These are the basic details of a wall with dimensions of 15 m. by 6m. and structure in your sewer system; very useful for use in environments containing media need .

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

level, stone wall, elevation, stone wall, plant retaining wall, stone wall, level, pebble, pvc tube, level, natural land, cut, profile, pvc tube, pvc tube m. in both ways, natural land, level, stone wall, isometric detail, natural land, pvc tube cut in half, ground level, stone wall, detail, gravel

Raw text data extracted from CAD file:

0,3 1,5 4,8 6,3 15 15 0,3 1,5 1,6 0,4 1,5 0,4 0,5 0,4 1,45 0,3 0,5 0,4 0,5 0,5 0,5 5 5 5 5 5 NIVEL 0 MURO DE PIEDRA ELEVACIÓN 5 5 5 MURO DE PIEDRA MURO DE PIEDRA PLANTA MURO DE CONTENCIÓN 1,5 MURO DE PIEDRA NIVEL 0 4,8 1,5 PIEDRÍN TUBO PVC 3" NIVEL 00 TIERRA NATURAL 5 5 5 CORTE A-A' PERFIL TUBO PVC 3" TUBO PVC 3" A A' TUBO PVC 3" @ 0.50 M. EN AMBOS SENTIDOS TIERRA NATURAL NIVEL 00 MURO DE PIEDRA DETALLE ISOMÉTRICO 5 5 5 TIERRA NATURAL TUBO PVC 3" 0.30 M CORTADO POR LA MITAD NIVEL TIERRA 0.00 MURO DE PIEDRA 5 5 5 5 5 5 5 DETALLE ... GRAVA
