Roof Extractor DWG Detail for AutoCAD

Roof Extractor DWG Detail for AutoCAD

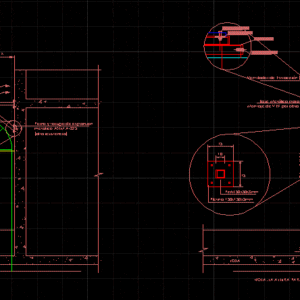

DETAILS ROOF EXTRACTOR ASSEMBLY IN SHAFT VERTICAL AND HORIZONTAL DISCHARGE

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Metal expansion stud bolt astm, Extraction duct, platen, profile, slab, Shaft, Extraction fan, Metal base for installation of vex by work, Base stand, Set screw, Rubber weatherstrip, Metal expansion stud bolt astm, Extraction duct, platen, profile, slab, S.n.p.t, Shaft, Extraction fan, Metal base for installation of vex by work, Base stand, Set screw, Rubber weatherstrip, Note: the mounting height of vexb vexc should be of mts s.n.p.t

Raw text data extracted from CAD file:

x Perno y tarugo de expansion metalico ASTM A-325 (alta resistencia) Ducto extraccion 10 15 Pletina 150x150x5mm Perfil 50x50x3mm 15 LOSA x x Shaft Ventilador de Extracción (VEX) Base Metálica para Montaje de VEX por obra SOPORTE BASE TORNILLO FIJACIÓN TORNILLO FIJACIÓN BURLETE DE GOMA x Perno y tarugo de expansion metalico ASTM A-325 (alta resistencia) Ducto extraccion 10 15 Pletina 150x150x5mm Perfil 50x50x3mm 15 LOSA x 2,5 m S.N.P.T Shaft Ventilador de Extracción (VEX) Base Metálica para Montaje de VEX por obra SOPORTE BASE TORNILLO FIJACIÓN TORNILLO FIJACIÓN BURLETE DE GOMA NOTA: LA ALTURA PARA MONTAJE DE VEXB Y VEXC DEBERA SER DE 2,5 MTS S.N.P.T

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	abzugshaube, air conditioning, ar condicionado, ASSEMBLY, autocad, de climatisation, DETAIL, details, discharge, DWG, einrichtungen, exaustor, exhaust, extracteur, extractor, facilities, fan, gas, gesundheit, horizontal, klima, l'approvisionnement en eau, la sant, le gaz, lüftung, machine room, maquinas, maschinenrauminstallations, provision, roof, shaft, ventilação, ventilation, vertical, wasser bestimmung, water
