Roofs DWG Block for AutoCAD

Roofs DWG Block for AutoCAD

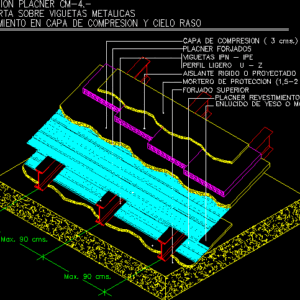

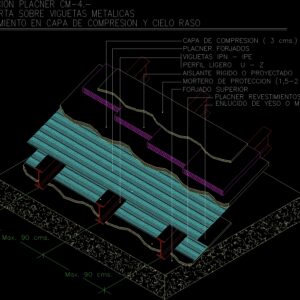

Roof
on metallic joists – Isolating in compression layer and ceiling

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Upper forged, Compression layer, Forged placner, Joists ipn ipe, Light profile, Projected rigid insulation, Protective mortar, Max. Cms., Insulation in compression layer, Cover over metal joists, Solution placner, Upper forged, Rigid insulation, Plaster plaster mortar, Placner coatings, Light profile, Joists ipn ipe, Forged placner, Compression layer, Max. Cms., With insulation in tunnel, Solution placner, Cover over metal joists, Upper forged, Compression layer, Forged placner, Joists ipn ipe, Light profile, Projected rigid insulation, Protective mortar, Max. Cms., Insulation in ceiling compression layer, Cover over metal joists, Solution placner, Plaster plaster mortar, Placner coatings

Raw text data extracted from CAD file:

FORJADO SUPERIOR CAPA DE COMPRESION ( 3 cms.) PLACNER FORJADOS VIGUETAS IPN - IPE PERFIL LIGERO U - Z AISLANTE RIGIDO O PROYECTADO MORTERO DE PROTECCION (1,5-2 cms.) Max. 90 cms. Max. 90 cms. AISLAMIENTO EN CAPA DE COMPRESION CUBIERTA SOBRE VIGUETAS METALICAS SOLUCION PLACNER CM-3.- FORJADO SUPERIOR AISLAMIENTO RIGIDO ENLUCIDO DE YESO O MORTERO PLACNER REVESTIMIENTOS PERFIL LIGERO U - Z VIGUETAS IPN - IPE PLACNER FORJADOS CAPA DE COMPRESION ( 3 cms.) Max. 90 cms. Max. 90 cms. CON CIELO-RASO Y AISLAMIENTO EN ENTREVIGADO SOLUCION PLACNER CM-5.- CUBIERTA SOBRE VIGUETAS METALICAS FORJADO SUPERIOR CAPA DE COMPRESION ( 3 cms.) PLACNER FORJADOS VIGUETAS IPN - IPE PERFIL LIGERO U - Z AISLANTE RIGIDO O PROYECTADO MORTERO DE PROTECCION (1,5-2 cms.) Max. 90 cms. Max. 90 cms. AISLAMIENTO EN CAPA DE COMPRESION Y CIELO RASO CUBIERTA SOBRE VIGUETAS METALICAS SOLUCION PLACNER CM-4.- ENLUCIDO DE YESO O MORTERO PLACNER REVESTIMIENTOS

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, ceiling, compression, DWG, forge, forjado, isolating, joists, layer, metallic, plafond, roof, roofs
