Section By Facade DWG Section for AutoCAD

Section By Facade DWG Section for AutoCAD

Section by terrace – Roof – Joists – Polyurethane foam

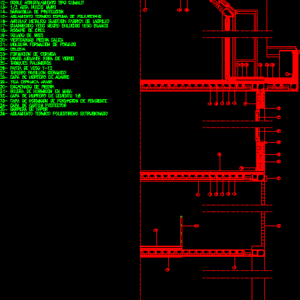

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

thermal insulation extruded polystyrene, vapor barrier, protective cardboard layer, slope formation concrete layer, cement mortar layer, concrete screed in mass, stone casing, Arabic ceramic tile, grip mortar layer, Ceramic tile board, plaster paste, partition walls, fiberglass insulation blanket, cornice formation, celosia, molding forging, limestone seawater, Stoneware flooring, stoneware skirting, trim plaster black plaster white plaster, angular metal fastening brick factory, thermal insulation polyurethane foam, protection railing, Hollow hollow wall, double glazing type climalit, lacquered aluminum carpentry, screed cement screed, cement mortar layer, layer of river sand, comprehension layer, Ceramic vault, reinforced semi-resistant joist, waterproofing sheet, separator board contour, reinforced concrete footing, cleaning concrete

Raw text data extracted from CAD file:

36- AISLAMIENTO TERMICO POLIESTIRENO EXTRUSIONADO 35- BARRERA DE VAPOR 34- CAPA DE CARTON PROTECTOR 33- CAPA DE HORMIGON DE FORMACION DE PENDIENTE 36 35 34 33 32 19 29 28 27 26 25 24 23 18 17 13 12 11 32- CAPA DE MORTERO DE CEMENTO 1:6 31- SOLERA DE HORMIGON EN MASA 30- ENCACHADO DE PIEDRA 29- TEJA CERAMICA ARABE 28- CAPA DE MORTERO DE AGARRE 27- TABLERO RASILLON CERAMICO 26- PASTA DE YESO Y-12 25- TABIQUES PALOMEROS 24- MANTA AISLANTE FIBRA DE VIDRIO 23- FORMACION DE CORNISA 22- CELOSIA 21- MOLDURA FORMACION DE FORJADO 20- VIERTEAGUAS PIEDRA CALIZA 19- SOLADO DE GRES 18- RODAPIE DE GRES 17- GUARNECIDO YESO NEGRO ENLUCIDO YESO BLANCO 16- ANGULAR METALICO SUJECION FABRICA DE LADRILLO 15- AISLAMIENTO TERMICO ESPUMA DE POLIURETANO 14- BARANDILLA DE PROTECCION 13- 1/2 ASTA HUECO MURO 12- DOBLE ACRISTALAMIENTO TIPO CLIMALIT 11- CARPINTERIA DE ALUMINIO LACADO 10- RECRECIDO DE CEMENTO RULETEADO 9- CAPA DE MORTERO DE CEMENTO 1:6 8- CAPA DE ARENA DE RIO 7- CAPA DE COMPRENSION 6- BOVEDILLA CERAMICA 5- VIGUETA SEMIRRESISTENTE ARMADA 4- LAMINA IMPERMEABILIZANTE 3- SEPARADOR JUNTA DE CONTORNO 2- ZAPATA DE HORMIGON ARMADO 1- HORMIGON DE LIMPIEZA 20 19 18 17 16 15 8 9 7 6 5 19 17 17 14 9 31 30 22 21 10 9 8 7 6 5 5 4 3 2 1
