Section Facade DWG Section for AutoCAD

Section Facade DWG Section for AutoCAD

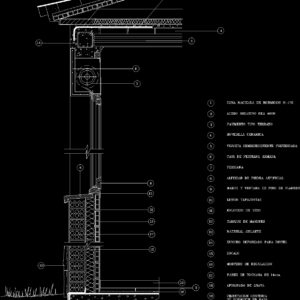

Section facade window with winding curtain – Roof of tiles – Insulation roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

Scaffolding of mahones, Facade, section, Toxana wall of, Concrete area of concrete, Negative steel rea, Terrazzo pavement, Ceramic swirl, Semi-resistant pre-stressed beam, Box of armed blinds, Blind, Alfalation of artificial stone, Frame window of pine for flutes, Glance, Plaster plaster, Insulating material, Reinforced zuncho for lintel, Zocalo, Mortar of regulation, Stacked gravel, Foundation continues, Of concrete in mass, Compacted base, Asphalt cloth bib, Natural stone

Raw text data extracted from CAD file:

TABIQUE DE MAHONES Fachada Seccion PARED DE TOCHANA DE 14cm. 1 2 3 4 5 6 7 8 9 10 11 12 17 13 14 15 16 1 ZONA MACIZADA DE HORMIGON H-175 2 ACERO NEGATIVO REA 4600 3 PAVIMENTO TIPO TERRAZO BOVEDILLA CERAMICA 4 5 VIGUETA SEMIRRESISTENTE PRETENSADA 6 CAJA DE PERSIANA ARMADA 7 PERSIANA 8 ALFEIZAR DE PIEDRA ARTIFICIAL 9 MARCO Y VENTANA DE PINO DE FLANDES 10 LISTON TAPAJUNTAS 11 ENLUCIDO DE YESO 12 13 MATERIAL AISLANTE 14 ZUNCHO REFORZADO PARA DINTEL 15 ZOCALO 16 MORTERO DE REGULACION 17 APISONADO DE GRAVA CIMENTACION CONTINUA DE HORMIGON EN MASA BASE COMPACTADA BABERO DE TELA ASFALTICA PIEDRA NATURAL 18 19 20 21 22 18 19 20 21 22

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, construction details section, curtain, cut construction details, DWG, facade, insulation, roof, section, tiles, winding, window
