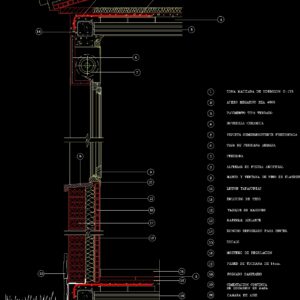

Section Floor -Roof By Window With Curtain Blind DWG Section for AutoCAD

Section Floor -Roof By Window With Curtain Blind DWG Section for AutoCAD

Tile roof-double wall isolated

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Septum, natural stone, Asphalt bib, Of concrete in mass, Continuous foundation, Mortar of regulation, plinth, Reinforced lintel for lintel, isolating material, Plaster plaster, Flashing list, Frame window pine flanders, Artificial stone masonry, blind, Armored blind box, Prestressed semi-resistant beam, Ceramic vase, Terrace floor type, Negative steel real, Solid concrete area, Tochana wall, Sanitary wrought iron, air chamber, constructive section

Raw text data extracted from CAD file:

TABIQUE DE MAHONES 22 21 20 19 18 22 21 20 19 18 PIEDRA NATURAL BABERO DE TELA ASFALTICA DE HORMIGON EN MASA CIMENTACION CONTINUA 17 MORTERO DE REGULACION 16 ZOCALO 15 ZUNCHO REFORZADO PARA DINTEL 14 MATERIAL AISLANTE 13 12 ENLUCIDO DE YESO 11 LISTON TAPAJUNTAS 10 MARCO Y VENTANA DE PINO DE FLANDES 9 ALFEIZAR DE PIEDRA ARTIFICIAL 8 PERSIANA 7 CAJA DE PERSIANA ARMADA 6 VIGUETA SEMIRRESISTENTE PRETENSADA 5 4 BOVEDILLA CERAMICA PAVIMENTO TIPO TERRAZO 3 ACERO NEGATIVO REA 4600 2 ZONA MACIZADA DE HORMIGON H-175 1 16 15 14 13 17 12 11 10 9 8 7 6 5 4 3 2 1 PARED DE TOCHANA DE 14cm. FORJADO SANITARIO CAMARA DE AIRE SECCION CONSTRUCTIVA

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, BLIND, construction details section, curtain, cut construction details, DWG, floor, isolated, roof, section, tile, wall, window
