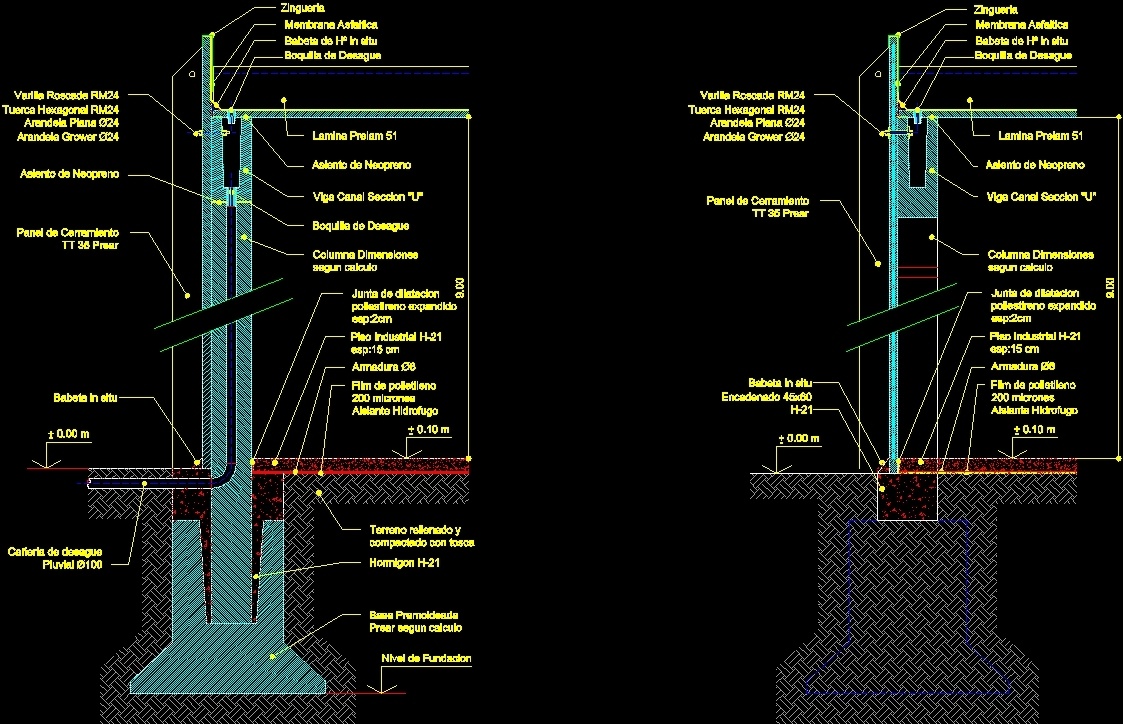

Section Industrial Ship DWG Section for AutoCAD

Integral section from foundation to roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

enclosure panel tt prear, threaded rod, hexagonal nut, flat washer, washer grower, drain nozzle, baboon of hº in situ, beam channel section, drain nozzle, asphalt membrane, laminate prelam, column dimensions according to calculation, babeta in situ, prearmed base prear according to calculation, concrete, foundation level, stuffed land compacted with tosca, polyethylene film micron insulating waterproof, armor, Expanded polystyrene expansion joint, pluvial drainage pipe, neoprene seat, industrial floor cm, threaded rod, hexagonal nut, flat washer, washer grower, drain nozzle, baboon of hº in situ, asphalt membrane, beam channel section, laminate prelam, neoprene seat, column dimensions according to calculation, polyethylene film micron insulating waterproof, armor, Expanded polystyrene expansion joint, industrial floor cm, babeta in situ, chained, enclosure panel tt prear, zingueria

Raw text data extracted from CAD file:

9.00 9.00 Panel de Cerramiento TT 35 Prear Varilla Roscada RM24 Tuerca Hexagonal RM24 Arandela Plana Ø24 Arandela Grower Ø24 Boquilla de Desague Babeta de Hº in situ Viga Canal Seccion "U" Boquilla de Desague Membrana Asfaltica Lamina Prelam 51 Columna Dimensiones segun calculo Babeta in situ Base Premoldeada Prear segun calculo Hormigon H-21 Nivel de Fundacion + 0.10 m - + 0.00 m - Terreno rellenado y compactado con tosca Film de polietileno 200 micrones Aislante Hidrofugo Armadura Ø6 Junta de dilatacion poliestireno expandido esp:2cm Cañeria de desague Pluvial Ø100 Asiento de Neopreno Asiento de Neopreno Piso Industrial H-21 esp:15 cm 9.00 + 0.10 m - Varilla Roscada RM24 Tuerca Hexagonal RM24 Arandela Plana Ø24 Arandela Grower Ø24 Boquilla de Desague Babeta de Hº in situ Membrana Asfaltica Viga Canal Seccion "U" Lamina Prelam 51 Asiento de Neopreno Columna Dimensiones segun calculo Film de polietileno 200 micrones Aislante Hidrofugo Armadura Ø6 Junta de dilatacion poliestireno expandido esp:2cm Piso Industrial H-21 esp:15 cm Babeta in situ Encadenado 45x60 H-21 Panel de Cerramiento TT 35 Prear 9.00 + 0.00 m - Zingueria Zingueria

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, DWG, FOUNDATION, industrial, integral, roof, section, ship, stahlrahmen, stahlträger, steel, steel beam, steel frame, structure en acier
