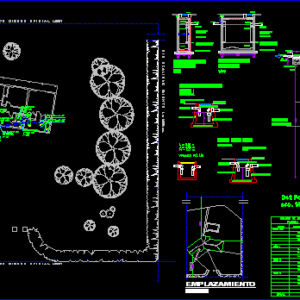

Sewer plate private with constructive details – Measures and plant of net

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Thickness of the wall: in h.a., sediment, Slope, concrete, background, Emplantillado:, Cross-section septic tank, air, water level, variable, C.ref, Departure, Thickness of the wall: in h.a., sediment, Slope, concrete, background, Emplantillado:, Longitudinal section s, air, water level, variable, C.ref, Departure, Working height, Bottom diameter, Filtration level, Stuffing bolones, Line stuffing bolons, concrete, variable, discharge, Det. Absorbing well esc., curb, Pvc, Pvc, Slab: acma type mesh and:, Excavation pending, curb, Plant well, Pvc ventilation mm, Upper diameter mts, Lower diameter mts, Plant pit esc., Inlet drain, Drain outlet, chimney:, Blue green red cyan write, owner, Final project, Certificate of receipt, Health service firm, firms, contractor, designer, date, service, Codegua, Sewerage project, Lot population, Location, commune, Start notice, Street, Feasibility certificate, draft, informative, date, explanatory notes, Of location, date, sheet, Municipal number, Box of artefacts u.h., U.e.h., enclosure, Kitchen house, bathrooms, artifact, Mlav, Lvaj, quantity, single family Home, total, Grease interceptor chamber, Radier simple concrete., Brick masonry, Curve record tee., Stucco mortar and:, Volume lts, Ground level, scale, Should be cleaned every month, Stucco mortar and:, Brick masonry, Radier simple concrete., Should be cleaned every month, Ground level, Cs, Curve record tee., C.ll, scale, Short camera soap, Vpvc, Mlav, Lvaj, Or cm., Ci nº, Ccv, Mts, Pvc mm, Mts, Pvc mm, Mts, Pvc mm, Pvc mm, Pvc, Pvc, Chamber short soap, Fat interceptor camera, total, bathrooms, bathrooms, av. The carmen, Sergio Errázuriz, Pc lot, Cs, C.ll, pit, water well, Or cm., Ci nº, Ccv, Well recognition, topsoil, Gravelly clay, Water napkin, Mts, Pvc mm, Mts, Pvc mm, Mts, Pvc mm, N.t.n., Mts, Pvc, Mts, Pvc, Mts, Pvc, Mts, Pvc mm

Raw text data extracted from CAD file:

\A2;50 \A2;50 \A1;37.5 \A1;20 \A1;260 \A1;20 \A1;43 \A2;12 \A2;40 \A2;70 \A2;100 \A2;70 \A2;100 \A2;300 \A1;1000 \A2;150 \A1;100 \A1;20 \A1;80 \A1;20 \A1;80 Espesor del muro: 0.20 m en H.A. Sedimento Pendiente 1% ; afinado a cemento puro; estuco 1:2 Hormigón 1:3:5 Fondo Emplantillado: 0.15 m Corte Transversal fosa Septica 1/50 HA= 1.70 m Aire 0.40 m Nivel del agua Variable C.REF 99.45 Salida AS NT 99.75 5 CE 99.02 5 19.99999999999318 5 Espesor del muro: 0.20 m en H.A. Sedimento Pendiente 1% ; afinado a cemento puro; estuco 1:2 Hormigón 1:3:5 Fondo Emplantillado: 0.15 m Corte longitudinal fosa Septica 1/50 HA= 1.70 m Aire 0.40 m Nivel del agua Variable C.REF 99.45 Salida AS NT 99.75 5 CE 99.02 CS 98.92 5 19.99999999999318 5 1000.0 2 d1/2" 150.0 Altura útil H.U.=10.0 m 100.0 Diámetro inferior Nivel de Filtración Relleno bolones Línea relleno bolones Hormigón H170 12.00000000000045 CT 99.75 39.99999999999773 Variable Descarga 3% Det. Pozo Absorbente esc. 1/50 Brocal 69.99999999999886 100.0 CR 99.43 3% PVC 110mm 69.99999999999886 3% 100.0 300.0 8 orquillas.d3/8" PVC 110mm CT 99.75 Losa: malla tipo acma d3/8" @ 0.15 ( e: 0.12 ) Pendiente excavación 1/5 99.49 \A2;20 \A2;260 \A2;20 \A2;20 \A2;80 \A2;20 Brocal Planta Pozo Ventilación PVC 110 mm Registro:0,4 x 0,4 Diàmetro superior 2 mts Diàmetro inferior 1 mts Planta Fosa esc. 1/50 Entrada Desagüe Salida Desagüe Chimenea: 0.60mt. x 0.60mt. 19.99999999998181 260.000000000008 19.99999999999886 19.99999999998181 80.00000000000114 19.99999999999886 blue 0.3 green 0.2 253 0.13 9 0.05 red 0.4 CYAN 0.15 WRITE 0.2 8 0.09 PROPIETARIO PROYECTO DEFINITIVO CERTIFICADO DE RECEPCION FIRMA EMPRESA DE SERVICIOS SANITARIOS FIRMAS CONTRATISTA PROYECTISTA FECHA N° SERVICIO CODEGUA PROYECTO DE INSTALACIONES DE ALCANTARILLADO CASA-HABITACIÓN LOTEO O POBLACION UBICACION COMUNA : : AVISO DE INICIO N° CALLE CERTIFICADO DE FACTIBILIDAD N° : PROYECTO N° INFORMATIVO FECHA NOTAS ACLARATORIAS DE UBICACION FECHA FECHA LAMINA 1 N° DE 1 N Nº MUNICIPAL : CUADRO DE ARTEFACTOS Y U.E.H U.E.H. 3 3 3 3 3 RECINTO COCINA CASA BAÑOS 1 ARTEFACTO MLAV Lp LVAJ Wc Lo Bo 1 1 1 CANTIDAD 1 1 1 1 VIVIENDA UNIFAMILIAR 3 3 3 TOTAL 3 1 3 Cámara interceptora de grasas radier hormigon simple. albañileria de ladrillos curva o tee de registro. estuco mortero e: 0.02 50 VOLUMEN 192 Lts nivel de terreno ESCALA 1:25 Debe limpiarse cada 2 meses H = 0.3 m A = 0.80 m L = 0.80 m 50 estuco mortero e: 0.02 albañileria de ladrillos radier hormigon simple. Debe limpiarse cada 2 meses nivel de terreno C.S 0. 98.60 curva o tee de registro. C.LL 98.70 ESCALA 1:25 Cámara corta jabòn Lp WC WC WC V.PVC 75 B° B° B° MLAV LVAJ E J E D E S L I N D E OR I E N T E L = 10000 cm. L I N E A D E C I E R R O O F I C I A L. L:50MT CI Nº 2 CI= 100.00 H= 0.75m CR= 98.25 CCV 60 L° L° L° P= 3% L= 14.52 mts PVC S D=110 mm P= 3% L= 3.35 mts PVC S D=110 mm P= 3% L= 09.95 mts PVC S D=110 mm P= 3% L= 10.41mts PVC S D=110 mm PVC s 75mm P= 3% PVC S 75mm P= 3% Camara Corta Jabón C.LL= 98.70 C.S= 98.60 Camara Interceptora de Grasas C.LL= 98.70 C.S= 98.60 3 3 TOTAL BAÑOS 2 Wc Lo Bo 12 1 1 1 1 30 3 1 3 3 3 BAÑOS 3 Wc Lo Bo 1 1 1 1 3 1 3 AV. EL CARMEN SERGIO ERRÁZURIZ PC nº3 Lote 14 C.S 0. 98.60 C.LL 98.70 FOSA H=1.7 a=2.6 b=0.8 POZO H=10.00 M E J E D E S L I N D E OR I E N T E L = 10000 cm. L I N E A D E C I E R R O O F I C I A L. L:50MT CI Nº 1 CI= 100.00 H= 0.25m CR= 98.75 CCV 60 Pozo Reconocimiento 5 10mt. Capa vegetal Ripioso y Arcilloso Napa de Agua P= 3% L= 7.17 mts PVC S D=110 mm P= 3% L= 5.82 mts PVC S D=110 mm P= 3% L= 3.00 mts PVC S D=110 mm \LEMPLAZAMIENTO\l \fSwis721 BT|b1|i0|c0|p34;\H0.6667x;escala 1/500 \LPLANTA ALCANTARILLADO\l \fSwis721 BT|b1|i0|c0|p34;\H0.6667x;escala 1/100 19,61mt. 17,29mt. 63,37mt. N.T.N. P= 3% L= 0.90 mts PVC S D=50mm P= 3% L= 1.13 mts PVC S D=50mm L= 1.27 mts PVC S D=50mm P= 3% P= 3% L= 0.81 mts PVC S D=50 mm

Language	Spanish
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Masonry
