Slab DWG Block for AutoCAD

Slab DWG Block for AutoCAD

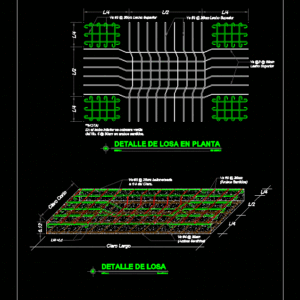

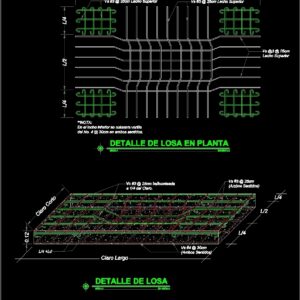

ARMED CONCRETE SLAB SOLID

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

short, slab detail, scale, unscaled, long clear, short cut, vs clear ballon., vs. upper bed, detail of floor slab, scale, unscaled, in the lower bed, no. in both ways.

Raw text data extracted from CAD file:

\A1;0.12 \A1;Claro Corto \A1;L/2 \A1;L/4 \A1;L/4 \A1;L/2 \A1;L/4 \A1;L/4 DETALLE DE LOSA ESCALA SIN ESCALA Claro Largo 0.12 Claro Corto Vs #3 @ 25cm balloneteada a 1/4 del Claro. Vs #4 @ 30cm (Ambos Sentidos) \A1;Vs #3 @ 25cm (Ambos Sentidos) L/4 L/2 L/4 \A1;L/4 +Ld L/2 L/4 L/4 L/2 L/4 L/4 Vs #3 @ 25cm Lecho Superior Vs @3 @ 25cm Lecho Superior Vs #3 @ 25cm Lecho Superior DETALLE DE LOSA EN PLANTA ESCALA SIN ESCALA **NOTA: En el lecho inferior se colocara varilla del No. 4 @ 30cm en ambos sentidos.

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	armed, autocad, béton armé, block, concrete, DWG, formwork, reinforced concrete, schalung, slab, solid, stahlbeton
