Slab DWG Detail for AutoCAD

Slab DWG Detail for AutoCAD

Fosse detail shema et avec ascenseur demonstration

Drawing labels, details, and other text information extracted from the CAD file (Translated from French):

between you, connector, single connector, floor, lattice, note, if cross-bending is reinforcing the, floor with bars all, m. The detail, profile, metallic, shore beam, beam, put the joist if the, massive is cm, variable, finishing on the edge of a floor on a metal beam., unidirectional floor., parallel beams.

Raw text data extracted from CAD file:

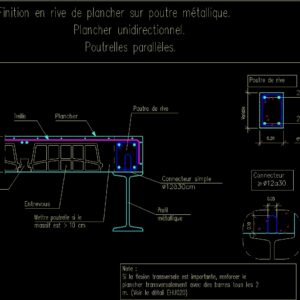

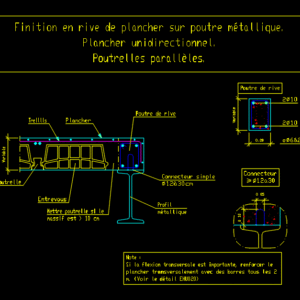

2d10 2d10 Entrevous Connecteur d12a30 Connecteur simple d12à30cm ed6á20 Plancher Treillis Note : Si la flexion transversale est importante, renforcer le plancher transversalement avec des barres tous les 2 m. (Voir le détail EHU020) Profil métallique Poutre de rive Poutre de rive Poutrelle Mettre poutrelle si le massif est > 10 cm 0.05 0.10 0.20 Variable Variable Finition en rive de plancher sur poutre métallique. Plancher unidirectionnel. Poutrelles parallèles.

Language	French
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
