Stabilization And Deshidration Slodge DWG Block for AutoCAD

Stabilization And Deshidration Slodge DWG Block for AutoCAD

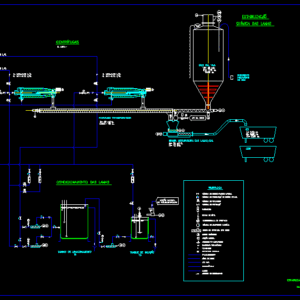

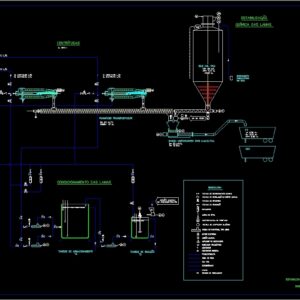

dIAGRAM OF OPERATION AND INSTALLATION

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

Symbology, Llamas, Flow direction, Escorrencias, Quicklime, Network water, Polyelectrolyte, Reservation container, Container, Volumetric dosing unit, Stirrer or mixer, Manual add, Electric motor, Mono type pump, Elastic adapter valve, Level probe, Rotameter, Splenoid valve, Retention valve, Manual throttle valve, Manual section valve, Manual add, Of polyelectrolyte, Pub., storage tank, Dilution tank, Conveyor screw, Mixing pump, Live silo, stabilization, Sludge chemistry, Lal, Lsl, Lsh, filling, pneumatic, The silo, Centrifuges, Of escorrencias, Supernatants, for, Water network, Sludge conditioning, Network air, Three-way solenoid valve, Stabilization dewatering of sludge, Schematic diagram of the etar

Raw text data extracted from CAD file:

SIMBOLOGIA LAMAS SENTIDO DE ESCOAMENTO ESCORRENCIAS CAL VIVA AGUA DE REDE POLIELECTROLITO CONTENTOR RESERVA CONTENTOR DOSEADOR VOLUMETRICO AGITADOR OU MISTURADOR V ADICAO MANUAL MOTOR ELECTRICO BOMBA DE PARAFUSO, TIPO MONO VALVULA DE ADAPTADOR ELASTICO SONDA DE NIVEL ROTAMETRO VALVULA DE SPLENOIDE VALVULA DE RETENCAO VALVULA DE REGULACAO DE DEBITO MANUAL VALVULA DE SECCIONAMENTO MANUAL CR C DV M M DV ADICAO MANUAL DE POLIELECTROLITO T3 T4 Q. MAX=6.12 L/S. Q. MAX=6.12 L/S. Q. MED=3.06 L/S. LONG.- 15 m. Q= 23 m‡/h. Q. MAX=6.12 L/S. Q. MED=3.06 L/S. HT= 2.80 m. C= 9.00 m. L= 2.50 m. H= 12 Bar. Q= 23 m‡/h. TANQUE DE ARMAZENAMENTO TANQUE DE DILUCAO PARAFUSO TRANSPORTADOR BOMBA MISTURADORA DAS LAMAS/CAL C3R C3 M M M PI M V V M V M PI PI HT= 7.10 m. VT= 50 m‡. SILO CAL VIVA M M ESTABILIZACAO QUIMICA DAS LAMAS LAL LSL LSH 3.50 m. M V ENCHIMENTO PNEUMATICO DO SILO M V V M M CENTRIFUGAS Q. UNIT.- M M M M M M DA E.E.8 (ESPESSADOR 1) DE ESCORRENCIAS E SOBRENADANTES PARA E.E.7 AGUA DA REDE CONDICIONAMENTO DAS LAMAS V M M M M (ESPESSADOR 2) DA E.E.8 Q. MAX=6.12 L/S. AR DA REDE M ELECTROVALVULA DE TRES VIAS ESTABILIZACAO E DESIDRATACAO DE LAMAS DIAGRAMA ESQUEMATICO DA ETAR

Language	Portuguese
Drawing Type	Block
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, diagram, DWG, installation, kläranlage, operation, stabilization, treatment plant
