Stair Detail DWG Section for AutoCAD

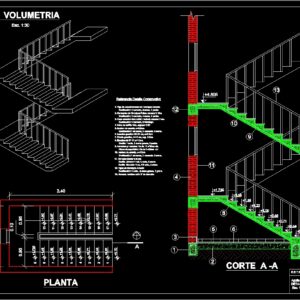

The plane, consisting of a platform (Esc 1:20) ladder, two (2) levels with two (2) breaks between each of the plants, their caesarean section (Esc 1:20) with each one of your references and volumetry (Esc 1:30).

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

plant, cut, Volumetry, He is not professor jesus r. Salazar, Aguila facundo ariel stair detail esc., Reference constructive detail, Metal railing diameter pipe, Iron of distribution: de, Armor ladder, Ladder, Socket esp., Granitic mosaic, Lime sand., Mortar of, Horizontal insulating layer thickness cm., Dosage: water-repellent., Dosage: stone., Concrete underlayment thickness, Dosific. Sand stone, Plaster interior lime., Dosific. Jaharro: sand., Dosific. Plaster: sand., Dosage: stone., Bracing concrete beam, Reinforced concrete beams, Dosage: sand gravel., Thick brick wall, Lime sand., Mortar of, Esc.

Raw text data extracted from CAD file:

\A1;3.40 \A1;2.00 ±0.00 \A1;0.95 \A1;0.10 \A1;0.95 +4.805 +3.27 +6.34 A A \L PLANTA 5 5 \L CORTE A -A \L VOLUMETRIA E.E.T.Nº 2 PROFESOR JESUS R. SALAZAR Aguila Facundo Ariel 6º 4º DETALLE DE ESCALERA Esc. 1:20 2 1 ±0,00 ±0,00 ±0,00 4 3 ±0,00 ±0,00 6 5 ±0,00 ±0,00 8 7 ±0,00 ±0,00 16 17 ±0,00 ±0,00 ±0,00 14 15 ±0,00 ±0,00 12 13 ±0,00 ±0,00 10 11 ±0,00 ±0,00 9 ±0,00 5 5 5 Referencia Detalle Constructivo 13. Baranda metalica caño 2" de diametro Hierro de repartición: 1fe de 6 c/20cm s/c. 9. Armadura p/ escalera 1fe del 10 c/10cm s/c. 8. Escalera de Hº Aº, e=10cm. 7. Zócalo granitico, h=10 cm, esp. 2.5cm. 6. Mosaico granitico 30x30 cm, e=2.5cm. Dosificación:1 cal aerea, ¼ cemento, 3 arena. 5. Mortero de asiento, e=2.5cm. 3. Capa aisladora horizontal y vertical, espesor 2 cm. Dosificación: 1 cemento, 2 hidrófugo. Dosificación: 1 cemento, 4 arena, 4 piedra. 2. Contrapiso de Hormigon Pobre, espesor 0.15m. Dosific. 1 cmto, 3 arena gruesa, 3 piedra. 11. Revoque interior a la cal. Dosific. Jaharro: 1 cal, ¼ cmto, 3 arena. Dosific. Enlucido: 1 cal, 1/8 cmto, 2 arena. Dosificación: 1 cemento, 3 arena, 3 piedra. 1. Viga de Arriostramiento de Hormigon Armado 12. Vigas de Hormigon Armado Dosificación: 1 cmto., 3 arena gruesa, 3 grava. 4. Muro de ladrillo visto, espesor 0.30 Dosificación:1 cal aerea, ¼ cemento, 3 arena. 10. Mortero de asiento, e=2.5cm. 1 2 3 4 7 5 8 11 6 13 12 9 9 10 +0.20 +0.37 +0.54 +0.71 +0.88 +1.05 +1.22 +1.39 +1.56 +1.735 Esc. 1:30
