Structure Wooden Cabin 3D DWG Section for AutoCAD

Structure Wooden Cabin 3D DWG Section for AutoCAD

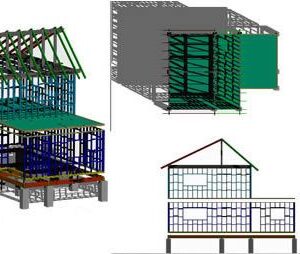

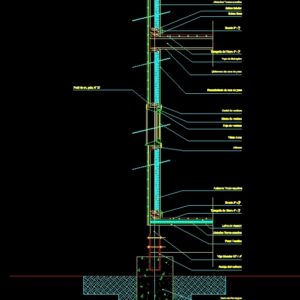

Axonometry and structural detailswooden cabin – 3D – section facade – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

outer machimbre, waterproof insulation, isolation, phenolic panel, upper hearth, lower floor, base base, from viraro, mezzanine beam, gypsum rock ceiling, plaster rock lining, window lintel, window frame, window leaf, mm glass, ledge, isolation, from viraro, phenolic panel, isolation, master beam, galvanized anchor, concrete dump, Earth, nailing strip, black trapezoid plate, ridge ridges, isolation, belt, fitted, Galvanized sheet metal channel., valance, ch’s profile galv.

Raw text data extracted from CAD file:

Machimbre Exterior Aislacion Hidrofuga (tipo Tybek) Aislacion Termo-acustica Panel Fenolico Solera Superior Solera Inferior Solera Base \A1;Zocalo 3" x \S3/4;" \A1;Tarugado de Viraro 4" x \S3/4;" Viga de Entrepiso Cielorraso de roca de yeso Revestimiento de roca de yeso Dintel de ventana Marco de ventana Hoja de ventana Vidrio 4 mm Alfeizar Aislacion Termo-acustica \A1;Zocalo 3" x \S3/4;" \A1;Tarugado de Viraro 4" x \S3/4;" Panel Fenolico Aislacion Termo-acustica Viga Maestra 12" x 4" Anclaje Galvanizado Dado de Hormigon Tierra Liston de clavado Chapa trapezoidal Color Negro zingueria de cumbrera Aislacion Termo-acustica Correa Cabio \A1;Machimbre 4" x \S3/4;" Canaleta de chapa galv. N° 27 Cenefa Perfil de ch. galv. N° 27
