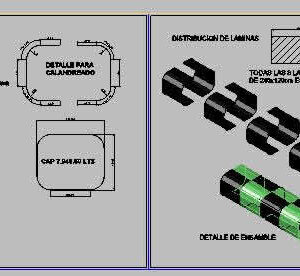

IN THE FILE IS TO REPRESENT TWO TANKS TAN KOF DIFFERENT CAPACITIES DEPENDING ON THE RADIUS OF THE PLATES AS SEE IN THE PLANE FOR DIFFERENT DIAMETERS OF THE CORNERS – WILL BE OBTEIN A DIFFERENT CAPACITY

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

assembly detail, sheet distribution, cap lts, assembly detail, sheet distribution, detail for calandreado, cap lts, detail for calandreado, all sheets of thickness, all sheets of thickness

Raw text data extracted from CAD file:

240 120 240 120 DETALLE DE ENSAMBLE DISTRIBUCION DE LAMINAS CAP 8.138 LTS DETALLE DE ENSAMBLE DISTRIBUCION DE LAMINAS DETALLE PARA CALANDREADO CAP 7.946.60 LTS 47,75 47,75 47,75 47,75 42.2 R30 60 42.2 R30 42.2 R30 60 42.2 R30 74,34 120 154,34 62,83 R40 37,17 R40 37,17 40 62,83 62,83 R40 37,17 R40 37,17 40 62,83 85,76 120,8 146,56 DETALLE PARA CALANDREADO 5 5 TODAS LAS 8 LAMINAS DE 240x120cm ESPESOR 4mm 5 5 TODAS LAS 8 LAMINAS DE 240x120cm ESPESOR 4mm
