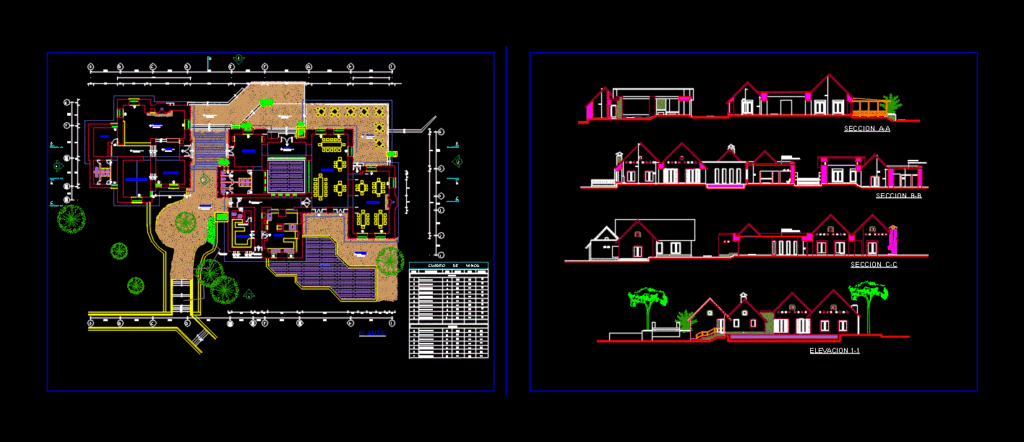

Tourist Area Management With Pool And Restaurant 2D DWG Design Section for AutoCAD

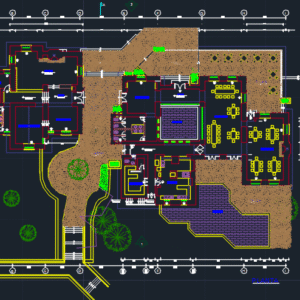

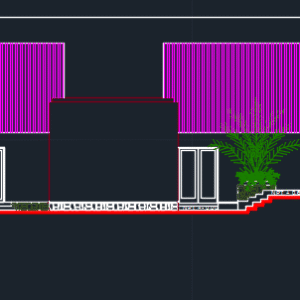

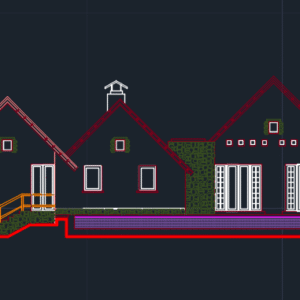

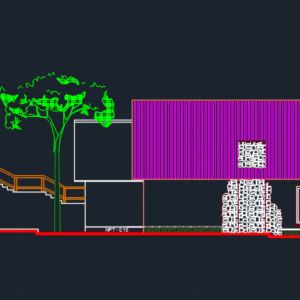

This is a management module of a tourist dresser located ina a rural area of one level that has a building with administrative offices, restaurant, fountain, swimming pool. This design includes floor plans, section and elevation.
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
         |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | 1000 - 2499 m² (10763.9 - 26899.0 ft²) |
| Building Features | Pool |
| Tags | administration, administrative offices, area, autocad, block, DWG, elevation, fountain, Hotel, inn, located, management, module, RECEPTION, resort, Restaurant, rural, section, swimming pool, tourism, tourist, tourist resort, villa |
