Traffic Signs DWG Block for AutoCAD

Traffic Signs DWG Block for AutoCAD

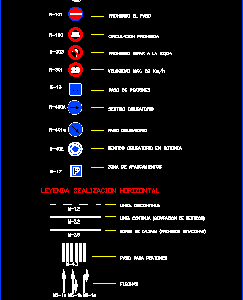

Signs of traffic

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

give way, forbidden passage, forbidden circulation, forbidden to turn left, pedestrian crossing, vertical signage legend, restricted, access, mandatory direction, mandatory stop, stop, mandatory sense in roundabout, obligatory passage, parking area, legend horizontal signage, dashed line, arrows, step for pedestrians

Raw text data extracted from CAD file:

CEDA EL PASO PROHIBIDO EL PASO CIRCULACION PROHIBIDA PROHIBIDO GIRAR A LA IZQDA. VELOCIDAD MAX. 20 Km/h PASO DE PEATONES LEYENDA SEÑALIZACION VERTICAL R-301 2 0 R-100 R-1 R-101 R-303 RESTRINGIDO ACCESO R-400A S-13 SENTIDO OBLIGATORIO DETENCION OBLIGATORIA R-2 STOP SENTIDO OBLIGATORIO EN ROTONDA R-401a PASO OBLIGATORIO R-402 S-17 ZONA DE APARCAMIENTOS M-2.2 LINEA CONTINUA (SEPARACION DE SENTIDOS) M-1.2 M-2.6 M-4.3 M5-1c M5-1a M5-1b M6-5 LEYENDA SEÑALIZACION HORIZONTAL LINEA DISCONTINUA CEDA EL PASO FLECHAS PASO PARA PEATONES BORDE DE CALZADA (PROHIBIDO ESTACIONAR)

Language	Spanish
Drawing Type	Block
Category	Roads, Bridges and Dams
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Garden / Park, Parking
Tags	autocad, block, DWG, schilder, Signage, SIGNS, sinalização, traffic
