Transformer Single Phase DWG Detail for AutoCAD

Transformer Single Phase DWG Detail for AutoCAD

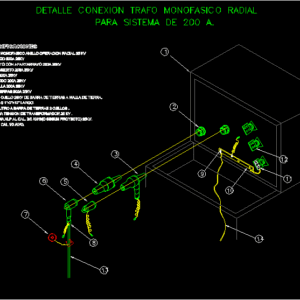

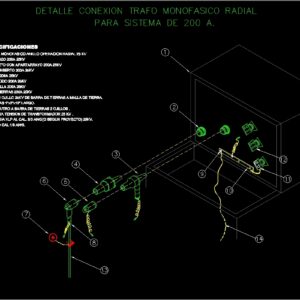

Isometric Single Phase Transformer Detail Operation radial ring.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

for a system., detail connection single-phase radial trafo, insert connector with panel, terminal, insert type connector, Specifications, elbow type terminal, fault indicator, earth adapter, zapata awg earth rod eye earth mesh., single-phase transformer ring kv radial operation, insulating plug, of energy xlp to lime. according, of long land., for neutral ground bar eyes, low voltage transformer kv, naked awg.

Raw text data extracted from CAD file:

PARA SISTEMA DE 200 A. DETALLE CONEXION TRAFO MONOFASICO RADIAL 14 9 3.- CONECTOR INSERTO CON APARTARRAYO 200A 25KV 2.- TERMINAL TIPO´POZO 200A 25KV 4.- CONECTOR TIPO INSERTO 200A 25KV ESPECIFICACIONES 6.- TERMINAL TIPO CODO 200A 25KV 7.- INDICADOR DE FALLA 200A 25KV 8.- ADAPTADOR DE TIERRAS 200A 25KV 9.- ZAPATA 1/0 AWG 1 OJILLO 25KV DE BARRA DE TIERRAS A MALLA DE TIERRA. 2 1 1.- TRANSFORMADOR MONOFASICO ANILLO OPERACION RADIAL 25 KV 4 3 6 5 7 10 11 12 5.- TAPON AISLANTE 200A 25KV 8 13 13.-CABLE DE ENERGIA XLP AL CAL. 3/0 AWG(O SEGUN PROYECTO) 25KV. 10.-BARRA DE TIERRAS 1"x2"x12" LARGO. 11.-ZAPATA PARA NEUTRO A BARRA DE TIERRAS 2 OJILLOS . 12.-TERMINAL DE BAJA TENSION DE TRANSFORMADOR 25 KV . 14.-CABLE DESNUDO CAL.1/0 AWG.

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, DWG, éclairage électrique, electric lighting, electricity, elektrische beleuchtung, elektrizität, iluminação elétrica, isometric, lichtplanung, lighting project, operation, phase, projet d'éclairage, projeto de ilumina, radial, ring, single, transformer
