Tugboat DWG Plan for AutoCAD

Tugboat DWG Plan for AutoCAD

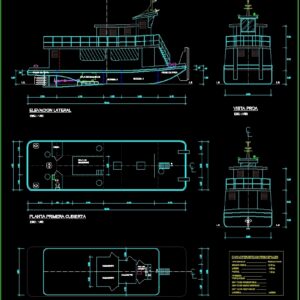

Embarcacion called pusher tug or medium sized; useful for the rivers of the Peruvian Amazon, typical for its refined and launched hull this file shows side view in elevation showing details of compartmented; plan views of the first and second cover, showing the distribution of camarotaje and bow and stern views

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

lb, total length, main characteristics, beam, prop, power, crew, wastewater cap, fuel cap, fuel:, region:, sheet:, loreto, iquitos, designer:, district:, plane:, scale :, trebornauj, owner:, indicated, general disposition, work:, drawn:, revised:, date :, cap tq fresh water, sh, pte de, command, cabin, prow view, forepeak, lateral elevation, room of machines, stern of apse, desp., room of, machines, plant first cover, plant second cover, material, steel, tug, type of ship

Raw text data extracted from CAD file:

1.20 .40 .30 1.20 .35 2.06 4.20 1.07 1.07 4.00 2.50 1.55 3.20 2.40 13.75 4.10 2.10 .90 4.45 2.70 13.75 .90 2.70 1.60 4.20 1.30 1.30 1.60 4.00 4.65 1.55 .70 2.30 10.10 1.90 1.30 1.43 1.30 4.04 1.37 1.37 1.30 1.30 1.03 1.03 4.04 1.20 2.00 1.90 1.20 2.00 1.90 L.B. C L 13.75 m. ESLORA TOTAL CARACTERISTICAS PRINCIPALES 4.20 m. 1.20 m. MANGA PUNTAL POTENCIA TRIPULACION CAP TQ DE AGUAS SERVIDAS CAP TQ DE COMBUSTIBLE MATRICULA : Región : LAMINA : LORETO 02 IQUITOS PROYECTISTA : Distrito : PLANO : ESCALA : TREBORNAUJ NOVIEMBRE 2013 PROPIETARIO : INDICADA DISPOSICION GENERAL OBRA : DIBUJADO : REVISADO : FECHA: CAP TQ DE AGUA DULCE 5 5 5 5 5 S.H. 5 5 5 5 PTE DE MANDO CAMAROTE CAMAROTE CAMAROTE 5 B L.B. L.B. A1 ESC. A PLOTEAR 1/50 VISTA PROA ESC : 1/50 C L PIQUE DE PROA BODEGA 1 BODEGA 2 5 5 5 5 ELEVACION LATERAL ESC : 1/50 5 5 SALA DE MAQUINAS PIQUE DE POPA L.B. DESP. SALA DE MAQUINAS 5 5 5 5 5 5 5 5 5 5 5 5 S C L 5 L.B. L.B. PLANTA PRIMERA CUBIERTA ESC : 1/50 5 5 5 5 5 5 5 PLANTA SEGUNDA CUBIERTA ESC : 1/50 5 C L 5 5 5 5 5 5 5 5 5 MATERIAL ACERO REMOLCADOR TIPO DE NAVE 5 5 5 5 5 5

Language	Spanish
Drawing Type	Plan
Category	Vehicles
Additional Screenshots
File Type	dwg
Materials	Steel, Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, boat, boats, boot, called, DWG, medium, peruvian, plan, rivers, ship, Transportation, typical
