Two-Level Lodging With Bathrooms 2D DWG Design Section for AutoCAD

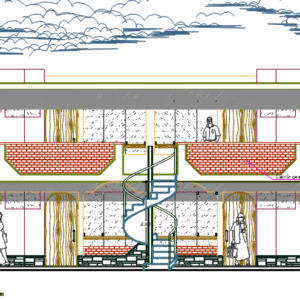

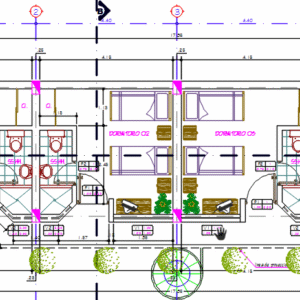

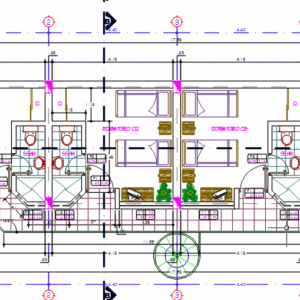

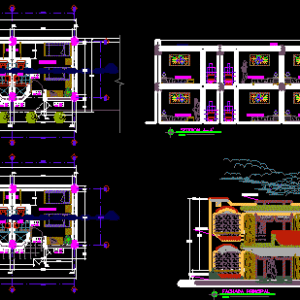

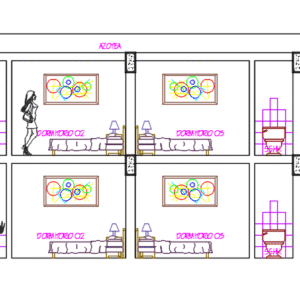

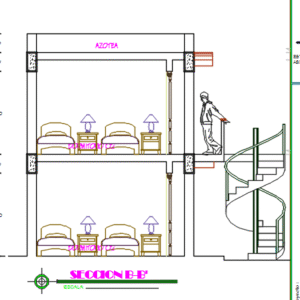

This is the design of a two-level Lodging with capacity for 16 people, eight double bedrooms with their respective bathrooms. This includes elevation, floor plans and sections.
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
     |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | 50 - 149 m² (538.2 - 1603.8 ft²) |
| Building Features | |
| Tags | 2d, accommodation, autocad, bathrooms, bedrooms, Design, double, DWG, elevation, elevations, floor plans, lodging, people, plants, Restaurant, section, sections |
