Under Ground Ducts DWG Section for AutoCAD

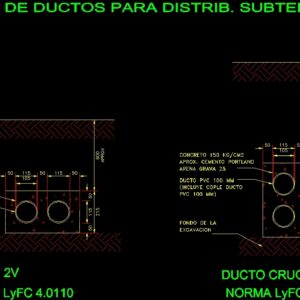

Detail in section of ducts for undergroun electric distribution

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Approx, Approx, Coupling duct, concrete, Approx. Portland cement, Pvc, Background of the, excavation, Sand gravel, Pvc pipe mm, Background of the, Cruise line, excavation, Duct, Approx. Portland cement, concrete, Pvc, Coupling duct, Pvc pipe mm, Sand gravel, Approx, Approx, Detail of pipelines for distrib. Underground, Standard lyfc

Raw text data extracted from CAD file:

\A1;50 \A1;215 \A1;115 \A1;50 \A1;380 \A1;115 \A1;50 \A1;50 \A1;600 APROX \A1;115 \A1;105 \A1;50 \A1;50 \A1;115 \A1;1020 APROX \A1;115 \A1;50 \A1;115 \A1;50 \A1;105 \A1;50 \A1;115 \A1;50 \A1;50 (INCLUYE COPLE DUCTO CONCRETO 150 KG/CM2 APROX. CEMENTO PORTLAND PVC 100 MM) FONDO DE LA EXCAVACION ARENA GRAVA 25 DUCTO PVC 100 MM 5 5 5 5 5 5 FONDO DE LA DUCTO CRUCERO 4V EXCAVACION DUCTO 2V APROX. CEMENTO PORTLAND CONCRETO 150 KG/CM2 PVC 100 MM) (INCLUYE COPLE DUCTO DUCTO PVC 100 MM ARENA GRAVA 25 5 5 600 APROX 5 5 5 5 5 1020 APROX 5 5 5 5 5 5 5 5 5 DETALLE DE DUCTOS PARA DISTRIB. SUBTERRÁNEA NORMA LyFC 4.0113 NORMA LyFC 4.0110

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
